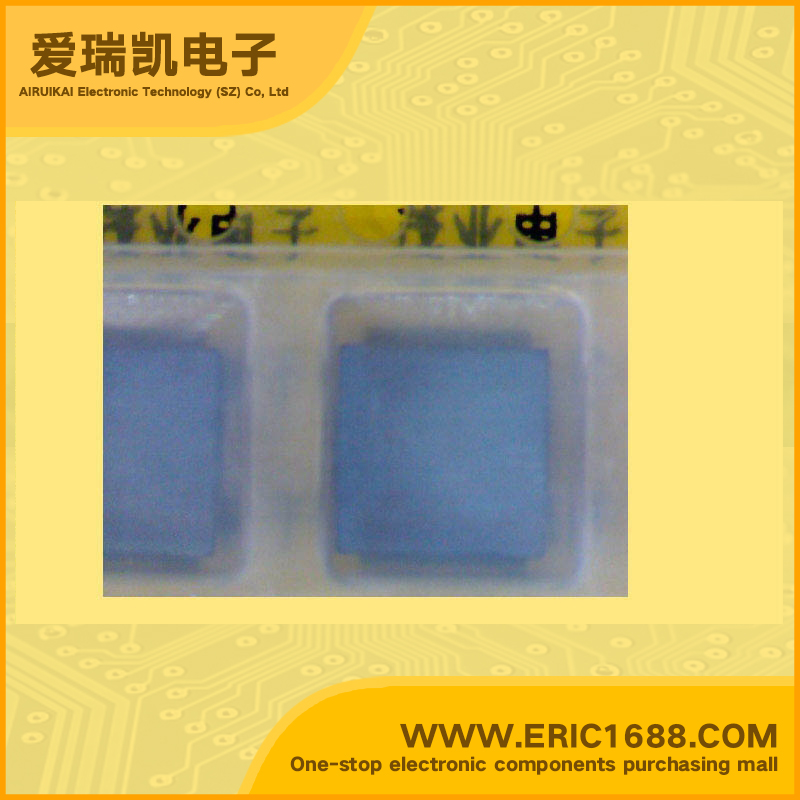

小功率电感 LQN6C220M04M00 22UH 5650-220
| 电感值Inductance | 22UH |
| 误差Tolerance | ±20% |
| 额定电流Current Rating | 1200mA |
| 饱和电流Current - Saturation | |
| 不同频率时的Q值Q @ Frequency | |
| 自振谐频率SRFFrequency - Self Resonant | 15MHz |
| DC电阻DCRDC Resistance (DCR) | 0.19Ω/Ohm |
| 屏蔽Shielding | |
| Description & Applications | Large Current Choke Coil LQN6C/LQS66C Series The LQN6C/LQS66C series are choke coils which have achieved low direct current resistance, large current capacity and large inductance by using high performance thick wire wrapping technology. Because the LQS66C series has a shielded construction, it can be mounted in high density without interference occurring between peripheral components. They are optimum for use as choke coils in DC/DC converters and DC power supply circuits. FEATURES 1. Both the LQN6C series with its open magnetic path construction and the LQS66C series with its magnetic shielding construction allow application to a wide variety of uses. 2. The inductance range covers from 0.12µH up to 10000µH allowing minute compatibility with the E6 series at 1µH to 1000µH. 3. Because the direct current resistance is small as well as the voltage drop and power consumption being small also, they are optimum for use as choke coils for DC power supply circuits. |
| 描述与应用 | 大电流扼流线圈LQN6C/LQS66C系列 LQN6C/LQS66C系列使用高性能厚的缠丝技术,已经实现低直流电阻，大电流容量和大电感扼流线圈。因为LQS66C系列具有屏蔽结构，它可以安装在高密度外围组件之间不发生干扰。 特点 1。其开放的磁路结构和使用它的磁屏蔽结构的LQS66C系列的LQN6C串联允许各种各样的用途。 2。由于直流电阻以及小的电压降所以功率消耗也小，它们适合用作DC电源电路的扼流线圈。 |
