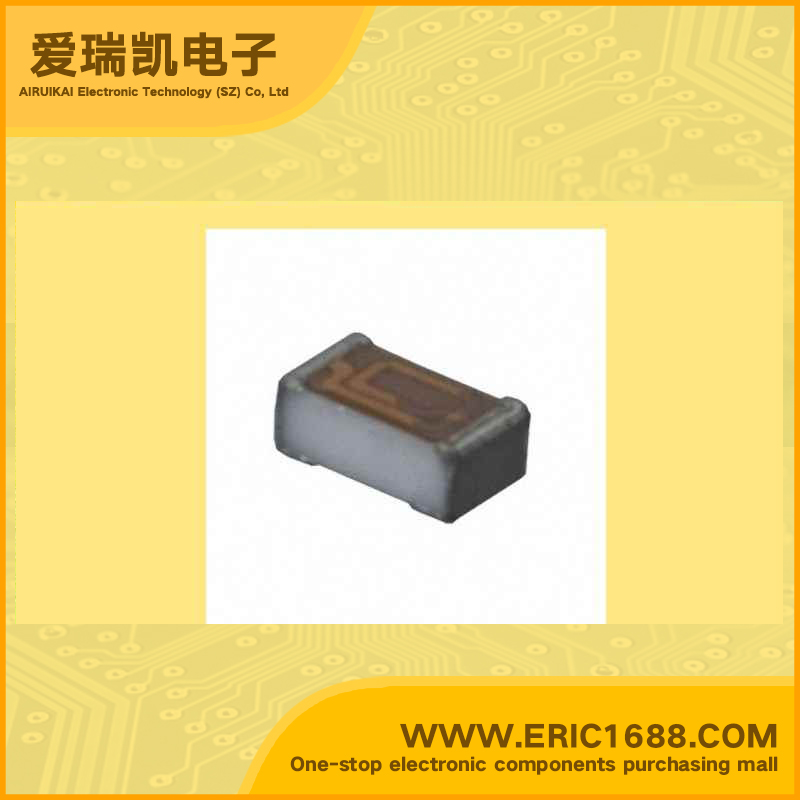

小功率电感 LQP15MN1N8B02D(LQP10A1N8B02T1M00-01) 1.8nH 0402-1N8
| 电感值Inductance | 1.8nH |
| 误差Tolerance | ±0.2nH |
| 额定电流Current Rating | 280mA |
| 饱和电流Current - Saturation | |
| 不同频率时的Q值Q @ Frequency | 13 @ 500MHz |
| 自振谐频率SRFFrequency - Self Resonant | 6.0GHz |
| DC电阻DCRDC Resistance (DCR) | 0.2Ω/Ohm |
| 屏蔽Shielding | |
| Description & Applications | LQP15M Series Features 1. Tight inductance tolerance (+-0.05nH, +-0.1nH, +-2%)realized by Murata's original film technology. Various inductance values enable assembly with no tuning. 2. Ultra small size 0402 inductor which is low profile and lightest weight in the world enables miniaturizing of mobile telecommunications equipment. LQP15M series weights 0.6mg/pc. while multilayer type inductor weights 0.9mg/pc. 3. High Q at high frequency range. 4. High self resonant frequency due to low stray capacitance and narrow inductance distribution provides stable inductance in high frequency circuits such as telecommunications equipment. |
| 描述与应用 | LQP15M系列 特点 1。紧电感公差（+0.05nH，+-0.1nH无+-2％）。 2。超小尺寸。 3。高Q值。 4。高自谐振频率。 |
