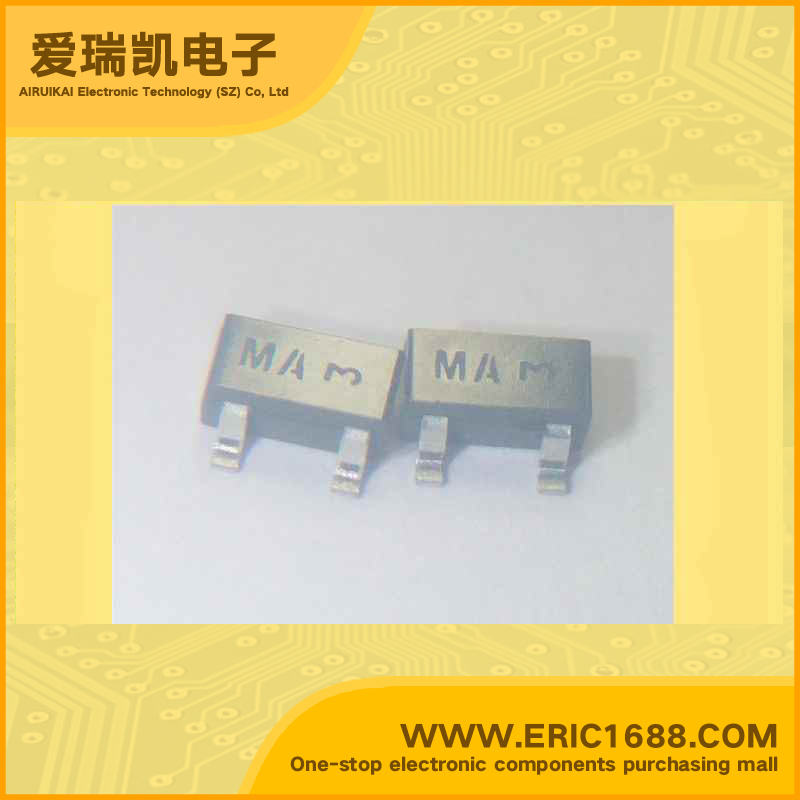

m1mA151AT1 开关二极管 40V 100mA/0.1A SOT-23/SC-59 marking/标记 mA 超高速开关
| 反向电压VrReverse Voltage | 40V |
| 平均整流电流IoAverage Rectified Current | 100mA/0.1A |
| 最大正向压降VFForward Voltage(Vf) | 1.2V |
| 反向恢复时间TrrReverse Recovery Time | 3.0ns |
| 最大耗散功率PdPower Dissipation | 200mW/0.2W |
| Description & Applications | Single Silicon Switching Diodes These Silicon EpitAxiAl PlAnAr Diodes Are designed for use in ultrA high speed switching ApplicAtions. These deVices Are housed in the SC–59 pAckAge which is designed for low power surfAce mount ApplicAtions. • FAst trr< 3.0 ns • Low CD, < 2.0 pF • AVAilAble in 8 mm TApe And Reel Use m1mA151/2AT1 to order the 7 inch/3000 unit reel. Use m1mA151/2AT3 to order the 13 inch/10,000 unit reel. |
| 描述与应用 | •单个硅开关二极管 •超高速开关应用。 •专用低功率表面贴装应用。 •反向恢复时间快 Trr＜3 ns， •低电容 CD＜2 pF |
| 规格书PDF |
