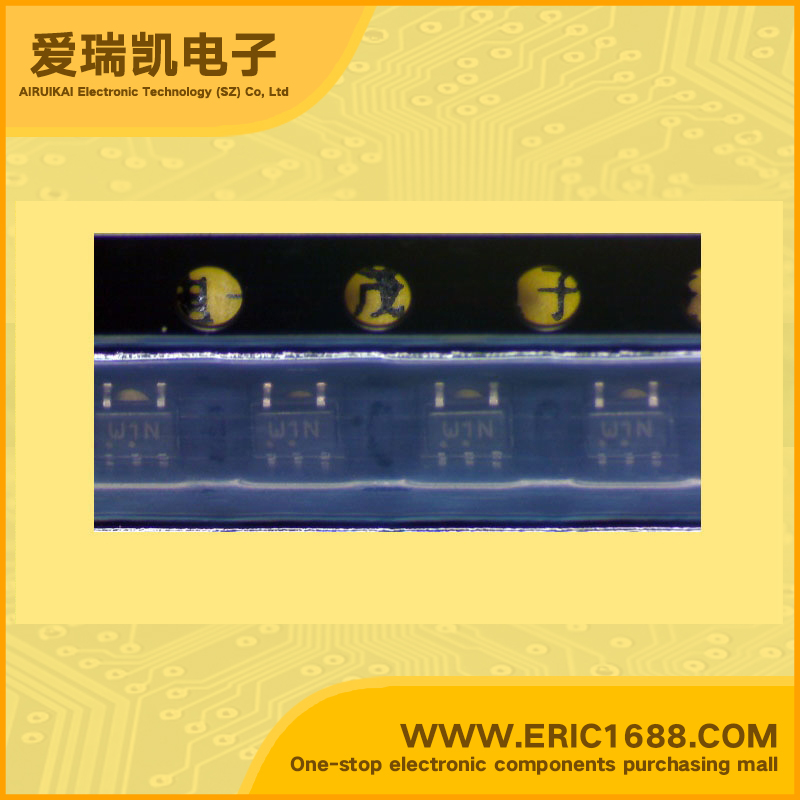

集成电路IC 缓存与线路驱动器 M74VHC1GT125DF2G SOT-353/SC-88A/SC70-5/TSSOP5 marking/标记 W1N
| 逻辑类型Logic Type | 非反相 Non-Inverting |
| 电路数Number of Circuits | 1 |
| 输入数Number of Inputs | 1 |
| 电源电压VccVoltage - Supply | 3 V ~ 5.5 V |
| 静态电流IqCurrent - Quiescent (Max) | 8mA，8mA |
| 输出高，低电平电流Current - Output High, Low | Noninverting Buffer / CMOS Logic Level Shifter with LSTTL−Compatible Inputs;single gate noninverting buffer fabricated with silicon gate CMOS technology. It achieves high speed operation similar to equivalent Bipolar Schottky TTL while maintaining CMOS low power dissipation. These input and output structures help prevent device destruction caused by supply voltage − input/output voltage mismatch, battery backup, hot insertion, etc. |
| 低逻辑电平Logic Level - Low | 同相缓冲/CMOS逻辑电平位移器 与LSTTL−兼容的输入;单门同相缓冲与硅栅CMOS技术制造的。 它实现了高速操作类似相当于双极肖特基TTL同时保持低功耗的CMOS。 这些输入和输出结构有助于防止设备破坏造成电源电压 - 输入/输出电压不匹配，电池备份，热插入等。 |
| 高逻辑电平Logic Level - High | |
| 传播延迟时间@Vcc，CLMax Propagation Delay @ V, Max CL | |
| Description & Applications | |
| 描述与应用 |
| 规格书PDF |
