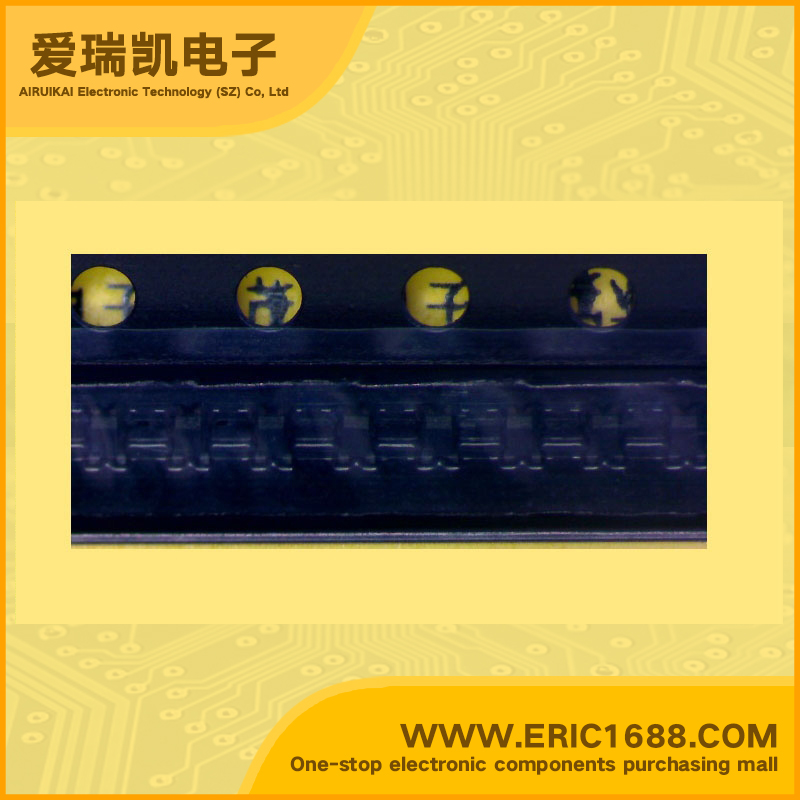

MA26V14 变容二极管 6V 4.99pF-5.41pF 2.05-2.23 ML3-N2 marking/标记 调谐/良好线性度/高电容率
| 反向电压VRReverse Voltage | 6V |
| 电容值CDiode capacitance | 4.99pF-5.41pF |
| @反向电压VR@Reverse Voltage | 1V |
| 电容值CDiode capacitance | 2.33pF-2.53pF |
| @反向电压VR@Reverse Voltage | 4V |
| 电容比Capacitance ratio | 2.05-2.23 |
| Description & Applications | Variable Capacitance Diodes Silicon epitaxial planer type For VCO Good linearity and large capacity ratio of VR – CD Small series resistance rD S-Mini package, enabling down-sizing of the equipment and automatic insertion through taping |
| 描述与应用 | 可变电容二极管 硅外延平面型对于VCO 良好的线性度和大电容率 小串联电阻rD SSS-小型封装，通过编带包装,允许设备的小型化和自动插入 |
| 规格书PDF |
