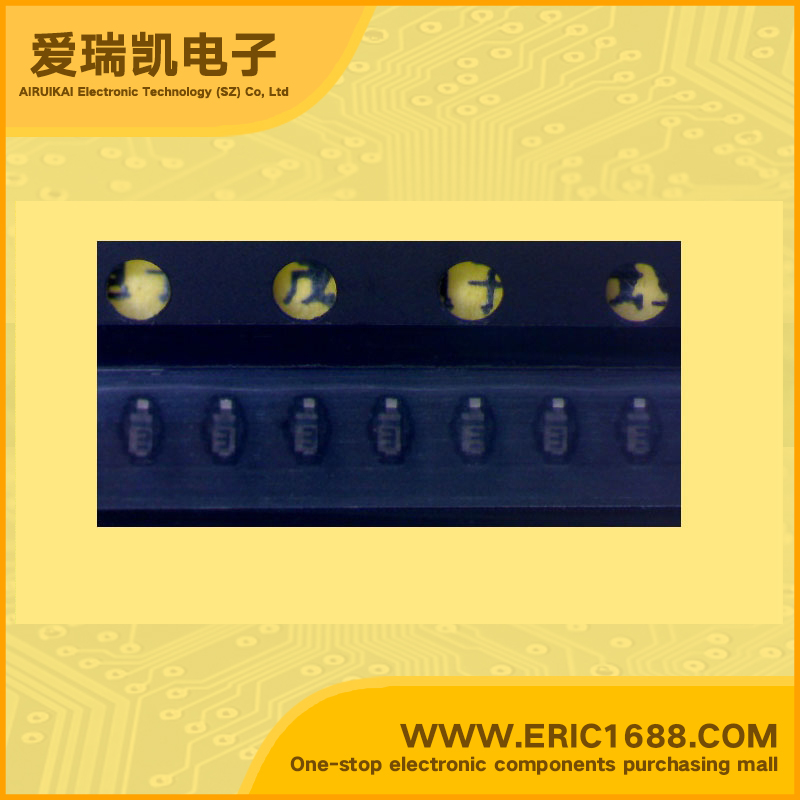

MA27V0300L 变容二极管 6V 5.20pF-5.80pF 2.1-2.6 SOD-723/SSSMini marking/标记 3 调谐/良好线性度/高电容率
| 反向电压VRReverse Voltage | 6V |
| 电容值CDiode capacitance | 5.20pF-5.80pF |
| @反向电压VR@Reverse Voltage | 1V |
| 电容值CDiode capacitance | 2.10pF-2.58pF |
| @反向电压VR@Reverse Voltage | 4V |
| 电容比Capacitance ratio | 2.1-2.6 |
| Description & Applications | Variable Capacitance Diodes Silicon epitaxial planar type For VCO Good linearity and large capacitance-ratio in CD − VR relation Small series resistance rD SSS-Mini type package, allowing downsizing of equipment and automatic insertion through the taping package |
| 描述与应用 | 可变电容二极管 硅外延平面型对于VCO 良好的线性度和大电容率 小串联电阻rD SSS-小型封装，通过编带包装,允许设备的小型化和自动插入 |
| 规格书PDF |
