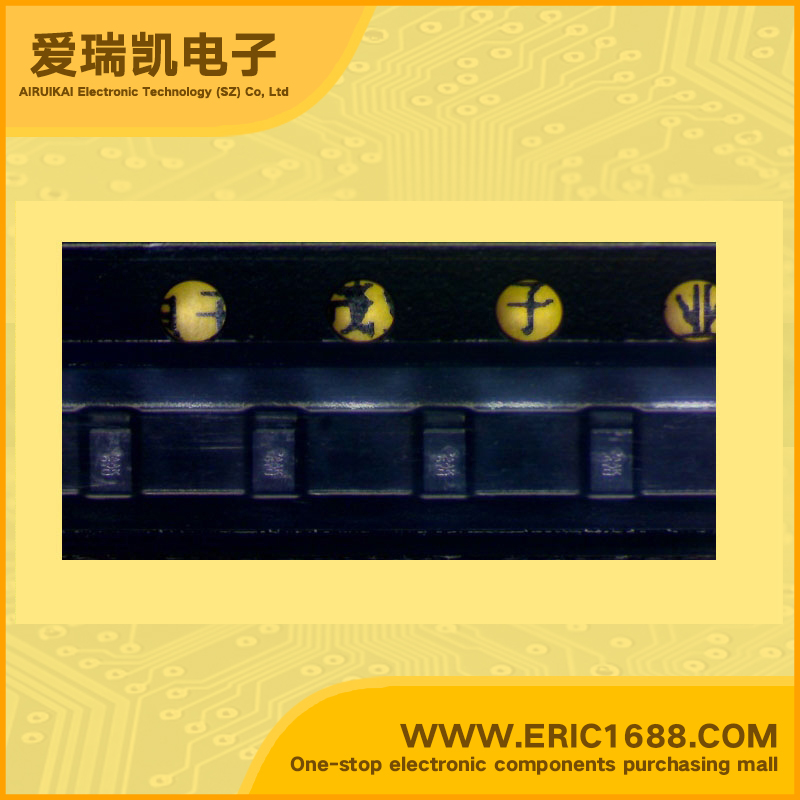

集成电路IC 模拟开关 MAX4688EBT-T UCSP-6

热销商品

产品描述
开关配置Circuit单刀双掷 1*SPDT
导通电阻On-State Resistance2.5Ω/Ohm
电源电压Voltage - Supply1.8V~5.5V

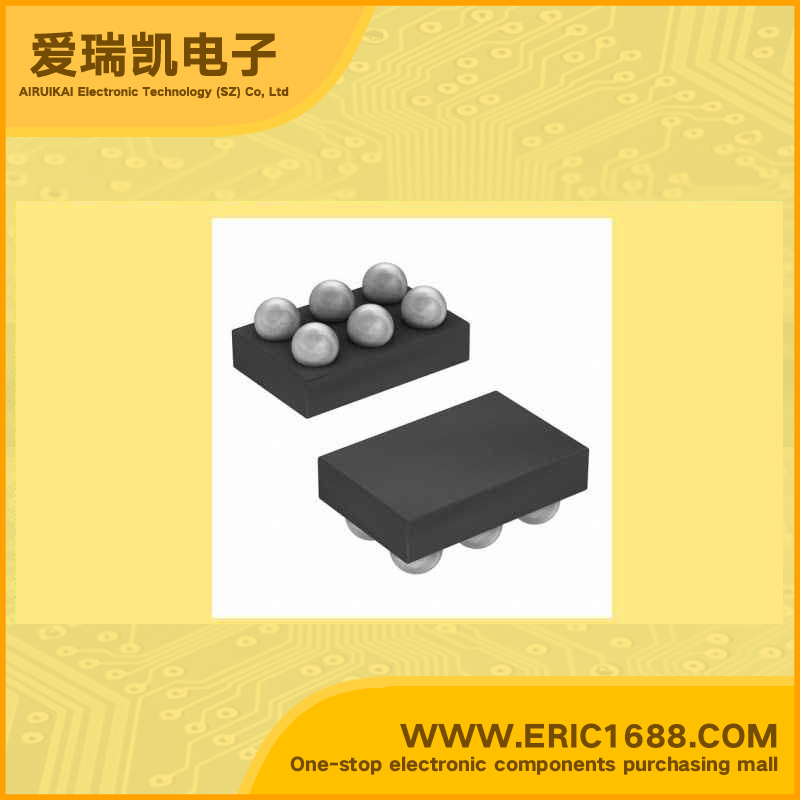

Description & Applications2.5Ω, Low-Voltage, SPST/SPDT Analog Switches in UCSP Package The MAX4688 low on-resistance, low-voltage analog switches operate from a single +1.8V to +5.5V supply. When powered from a 3V supply these devices feature 2.5Ω (max) RON, with 0.4Ω (max) RON matching and 1Ω (max) flatness. The MAX4688 offer fast switching speeds. The digital logic inputs are 1.8V logic compatible from a +2.7V to +3.3V supply. The MAX4688 are available in the chip-scale package significantly reducing the required PC board area. The chip occupies only a 1.50mm x 1.02mm area. The 3 x 2 array of solder bumps are spaced with a 0.5mm bump pitch. MP3 Players Cellular Phones Power Routing Battery-Operated Equipment Relay Replacement Audio and Video Signal Routing Communications Circuits PCMCIA Cards Cellular Phones Hard Drives
描述与应用2.5Ω,低电压,SPST/ SPDT模拟开关,UCSP封装 MP3播放器 蜂窝电话 电源布线 电池供电设备 更换继电器 音频和视频信号路由 通信电路 PCMCIA卡 蜂窝电话 硬盘驱动器
规格书PDF
