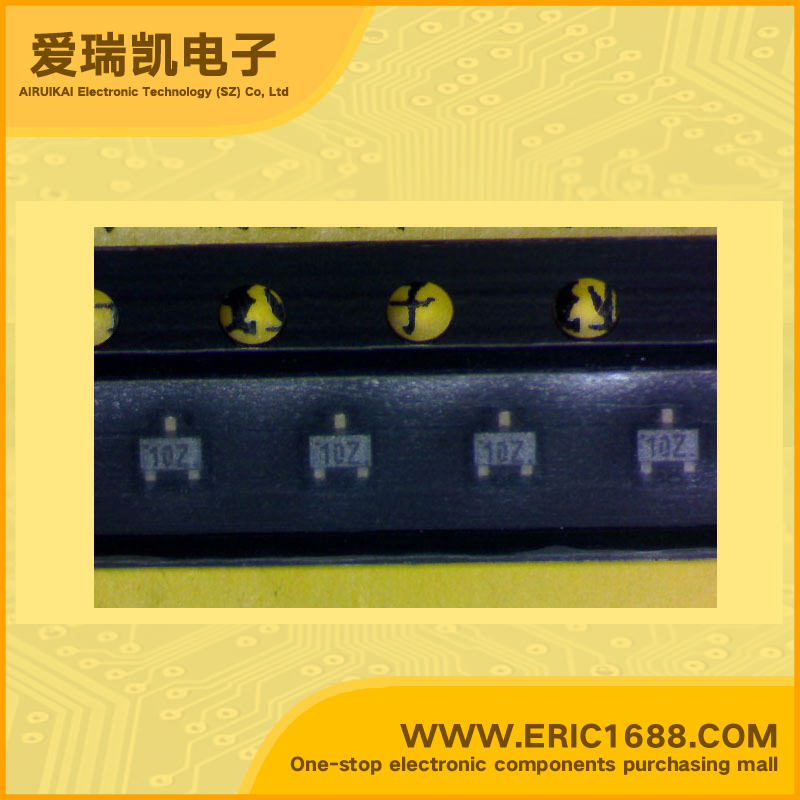

MAZT100H01JR 瞬态抑制二极管TVS/ESD 7V 0.15W/150mW SOT523-10V 标记10Z
| 极性Polarization | 单向 Unidirectional |
| 反向关断电压/工作电压VRWMReverse Standoff Voltage | 7V |
| 反向击穿电压VBRBreakdown Voltage | 10V |
| 峰值脉冲耗散功率PPPMPeak Pulse Power Dissipation | |
| 峰值脉冲电流IPPmPeak Forward Surge Current | |
| 额定耗散功率PdPower dissipation | 0.15W/150mW |
| Description & Applications | Silicon planar type For surge absorption circuit ；Features • Two elements anode-common type • Ptot=150 mW |
| 描述与应用 | 硅平面型浪涌吸收电路;特性 •双管共阳极 •Ptot=150mW |
| 规格书PDF |
