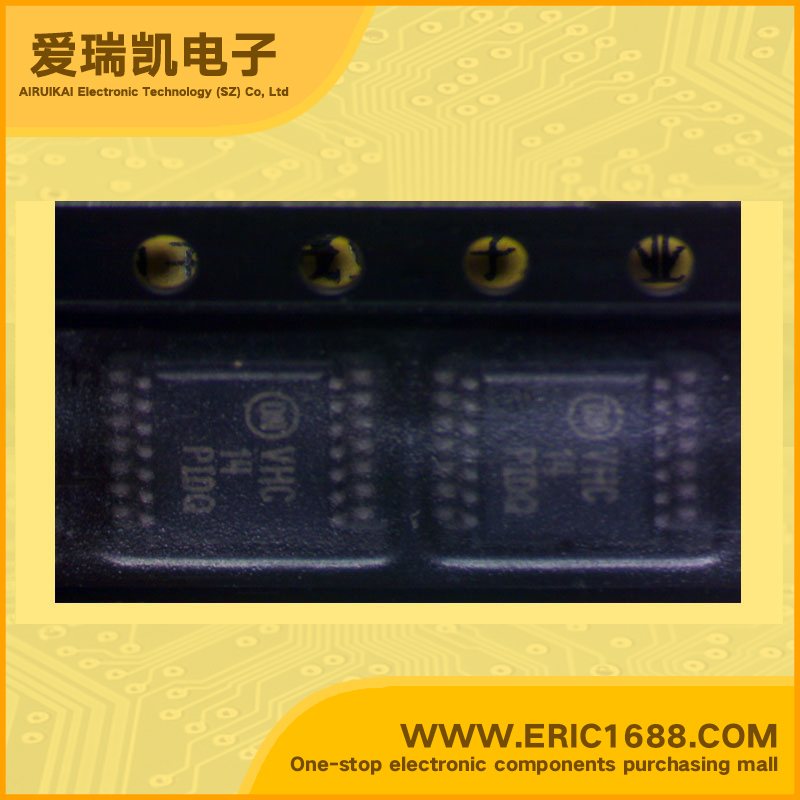

集成电路IC 反相施密特触发器 MC74VHC14DTR2g TSSOP14 marking/标记 VHC14
| 逻辑类型Logic Type | 反相施密特触发器 Inverting Schmitt trigger |
| 电路数Number of Circuits | 6 |
| 输入数Number of Inputs | 1 |
| 电源电压VccVoltage - Supply | 2V~5.5V |
| 静态电流IqCurrent - Quiescent (Max) | 2uA |
| 输出高，低电平电流Current - Output High, Low | -8mA，8mA |
| 低逻辑电平Logic Level - Low | 0.9V~1.65V |
| 高逻辑电平Logic Level - High | 2.2V~3.85V |
| 传播延迟时间@Vcc，CLMax Propagation Delay @ V, Max CL | 10.6ns @ 4.5V~5.5V，50pF |
| Description & Applications | Hex Schmitt Inverter ；Features High Speed: tPD = 5.5 ns (Typ) at VCC = 5.0 V Low Power Dissipation: ICC = 2.0uA (Max) @TA = 25°C High Noise Immunity: VNIH = VNIL = 28% VCC Power Down Protection Provided on Inputs Balanced Propagation Delays Designed for 2.0 V to 5.5 V Operating Range Low Noise: VOLP = 0.8 V (Max) Pin and Function Compatible with Other Standard Logic Families Latchup Performance Exceeds 300 mA ESD Performance: Human Body Model > 2000 V; Machine Model > 200 V Chip Complexity: 60 FETs or 15 Equivalent Gates Pb−Free Packages are Available |
| 描述与应用 | 十六进制施密特反相器；特性 高速：TPD =5.5纳秒（典型值），VCC= 5.0 V 低功耗：ICC=值2.0uA（最大值）@ TA= 25°C 高抗干扰：VNIH= VNIL=28％VCC 掉电保护的输入端 平衡传输延时 专为2.0 V到5.5 V工作范围 低噪声：VOLP= 0.8 V（最大值） 引脚和功能兼容与其他标准逻辑系列 闭锁性能超过300毫安 ESD性能：人体模型>2000 V; 机型号> 200 V 芯片复杂度：60 FETs或15等效门 提供无铅封装 |
