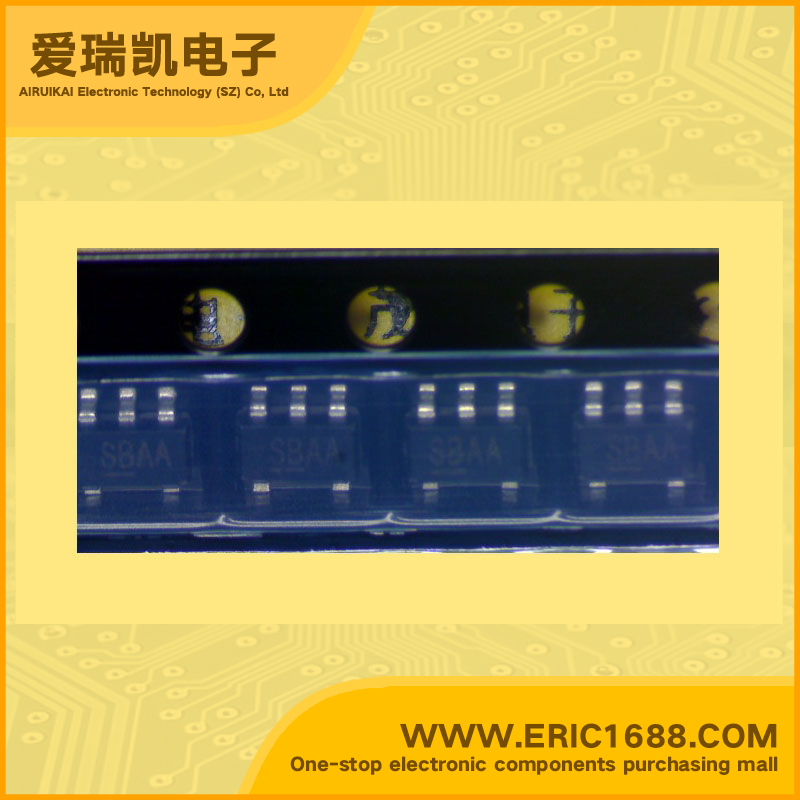

MIC2142YM5TR DC/DC升压转换器电源管理IC 22V SOT-153/SOT23-5 marking/标记 SBAA 微功率升压转换器
| 控制方式MODE | PWM |
| 输入电压VINInput Voltage | 2.2~16V |
| 输出电压VOUTOutput Voltage | 22V |
| 输出电流IOUTOutput Current | |
| 震荡频率FOSCOscillation Frequency | 330KHz |
| 内置FETBuilt-in FET | |
| Description & Applications | Micropower Boost Converter •2.2V to 16V input voltage •up to 22V output voltage •330kHz switching frequency •0.1µA shutdown current •85µA quiescent current •implements low power boost,SEPIC,or flyback •SOT23-5 package •LCD bias supply •white LCD drive •12V flash memory supply •3V to 5V conversion |
| 描述与应用 | 微功率升压转换器 •2.2V至16V的输入电压 •高达22V的输出电压 •开关频率为330kHz •关断电流0.1μA •85μA静态电流 •实现低功率升压，SEPIC或反激式 •SOT23-5封装 •LCD偏置电源 •白色LCD驱动 •12v闪存供应 •3V到5V的转换器 |
| 规格书PDF |
