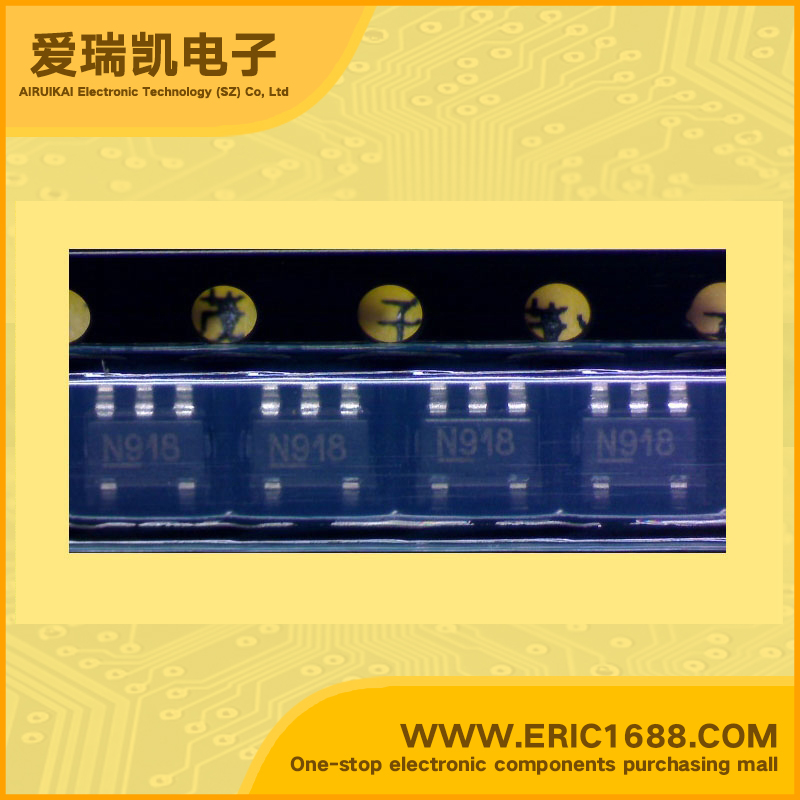

MIC5306-1.8YD5TR LDO电压调整器/稳压电源IC 1.8V 65mV SOT-153/SOT23-5 marking/标记 N918 短路保护 过热保护

热销商品

产品描述
电路数量Number of Regulators1
输入电压VINVoltage - Input2.25~5.5V
输出电压VOUTVoltage - Output1.8V
输出电流IoCurrent - Output150mA/0.15A
最大压降VDOVoltage - Dropout65mV
带使能脚EN/CE(ON/OFF功能)With Enable Pin无 No
最大耗散功率PdPower dissipation
Description & Applications150mA Micropower µCap Baseband LDO ;• Input voltage range: 2.25V to 5.5V • Ultra-low IQ: Only 16µA operating current • Stable with ceramic output capacitor • Low dropout voltage of 45mV @ 100mA • High output accuracy - ±1.0% initial accuracy - ±2.0% over temperature • Thermal Shutdown Protection • Current Limit Protection • Digital Logic Power Supply • Stand-by power supply • Cellular phones • PDAs • Portable electronics • Notebook PCs
描述与应用μCap基带LDO150MA微功耗;•输入电压范围:2.25V至5.5V •超低IQ:工作电流只有16μA •与陶瓷输出电容稳定 •45mV的电压,在100mA低压差 •高输出精度 - ±1.0%的初始精度 - 温度的±2.0% •热关断保护 •电流限制保护 •数字逻辑电源 •待机电源 •蜂窝电话 •掌上电脑 •便携式电子产品 •笔记本电脑
规格书PDF
相关型号列表
