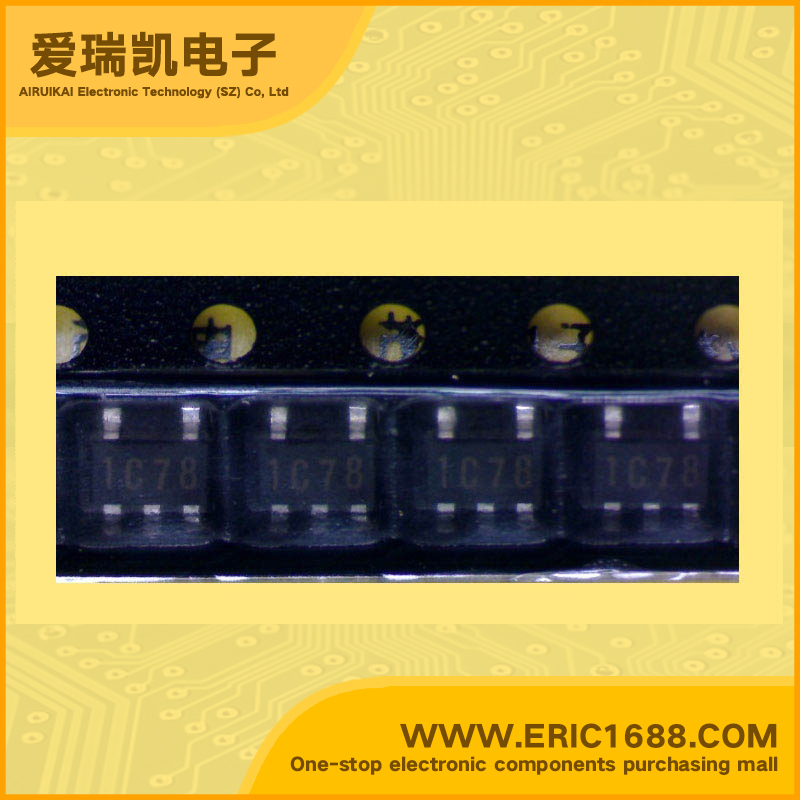

MM1216GNRE LDO电压调整器/稳压电源IC 5V 200mV/0.2V SOT-153/SOT-25A/SOT23-5 marking/标记 IC 短路保护 过热保护
电路数量Number of Regulators | 1 |
输入电压VINVoltage - Input | 16V |
输出电压VOUTVoltage - Output | 5V |
输出电流IoCurrent - Output | 40mA |
最大压降VDOVoltage - Dropout | 200mV/0.2V |
带使能脚EN/CE(ON/OFF功能)With Enable Pin | 无 No |
最大耗散功率PdPower dissipation | 150mW/0.15W |
Description & Applications | Low-Saturation Three-Pin Regulators with Externally Mounted Power Transistor ;• Input voltage 16V max. •Input/output voltage difference 0.2V typ. • Maximum driving current 15mA max. •No-load input current 250µA typ. •Thermal shutdown circuit provided |
描述与应用 | 外接功率晶体管的低饱和度三针器;•最大输入电压为16V。 •输入/输出电压差0.2V(典型值) •最大驱动电流15mA最大。 •无负载输入电流250μA(典型值) •热关断电路 |
规格书PDF |
