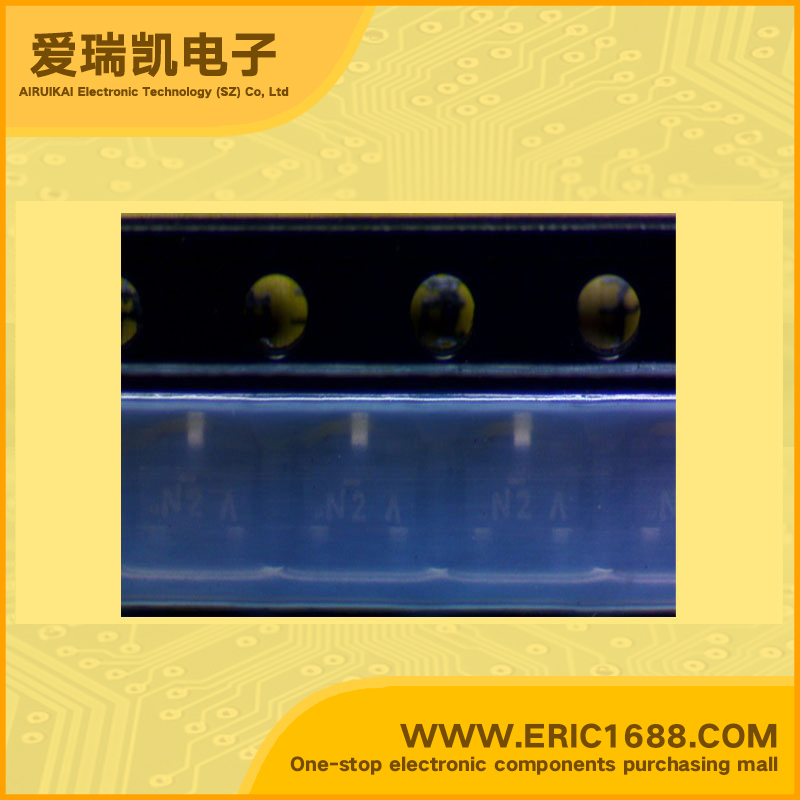

MMBT200 PNP三极管 -60V -500mA/-0.5A 250MHz 100~350 -400mV/-0.4V SOT-23/SC-59 marking/标记 N2 放大器
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | -60V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | −45V |
| 集电极连续输出电流ICCollector Current(IC) | −500mA/-0.5A |
| 截止频率fTTranstion Frequency(fT) | 250MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 100~350 |
| 管压降VCE（sat）Collector-Emitter SaturationVoltage | -400mV/-0.4V |
| 耗散功率PcPoWer Dissipation | 350mW/0.35W |
| Description & Applications | PNP epitaxial planar transistor PNP General Purpose Amplifier This device is designed for general purpose amplifier applications at collector currents to 300 mA |
| 描述与应用 | PNP外延平面晶体管 PNP通用放大器 此装置是专为通用放大器应用在集电极电流300毫安而设计 |
| 规格书PDF |
