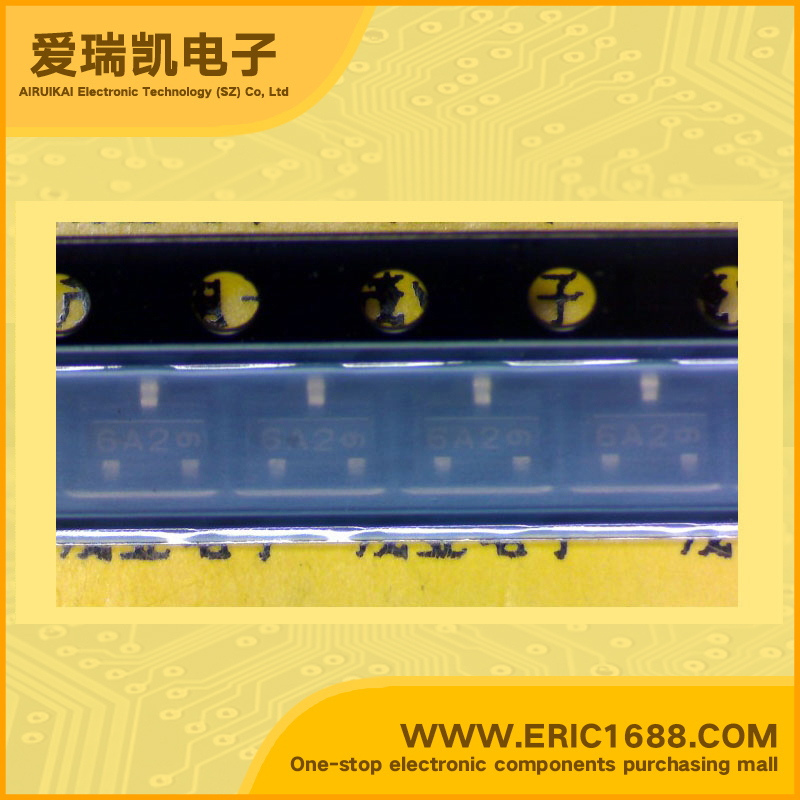

MMBZ6V2ALT1 瞬态抑制二极管TVS/ESD 3.0V 2.76A 0.225W/225mW SOT23-6.2V 标记6A2
| 极性Polarization | 单向 Unidirectional |
| 反向关断电压/工作电压VRWMReverse Standoff Voltage | 3.0V |
| 反向击穿电压VBRBreakdown Voltage | 6.2V |
| 峰值脉冲耗散功率PPPMPeak Pulse Power Dissipation | 24W |
| 峰值脉冲电流IPPmPeak Forward Surge Current | 2.76A |
| 额定耗散功率PdPower dissipation | 0.225W/225mW |
| Description & Applications | 24 and 40 Watt Peak Power Zener Transient Voltage Suppressors;Features • Pb−Free Packages are Available • SOT−23 Package Allows Either Two Separate Unidirectional configurations or a Single Bidirectional Configuration • Working Peak Reverse Voltage Range − 3 V to 26 V • Standard Zener Breakdown Voltage Range − 5.6 V to 33 V • Peak Power − 24 or 40 Watts @ 1.0 ms (Unidirectional) • ESD Rating of Class N (exceeding 16 kV) per the Human Body Model • Maximum Clamping Voltage @ Peak Pulse Current • Low Leakage < 5.0uA • Flammability Rating UL 94 V−O |
| 描述与应用 | 24和40瓦峰值功率 齐纳瞬态电压 抑制器;特性 •无铅包可用 •SOT-23封装允许无论是两个独立的单向 配置或单双向配置 •工作峰值反向电压范围 - 3 V至26 V •标准齐值击穿电压范围 - 5.6 V至33 V •峰值电力 - 24或40值毫秒Watts@1.0（单向 •每人类N类（超过16 kVESD额定值 人体模型 •最大钳位电压@峰值脉冲电流 •低漏<5.0uA •阻燃等级UL 94 V-O |
| 规格书PDF |
