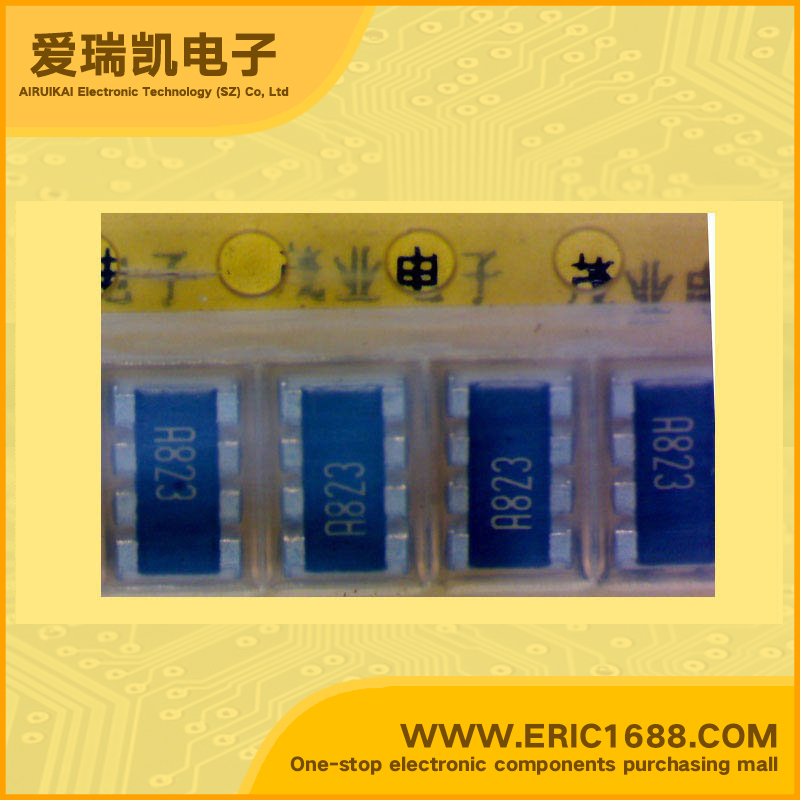

4个电阻排阻 MNR34J5ABJ823 82.0kΩOhm 4(1206)-82K marking标记R823
| 电阻值Resistance | 82.0kΩ/Ohm |
| 误差Tolerance | ±5% |
| 电阻器数Number of Resistors | 4 |
| 引脚数Number of Pins | 8 |
| 功耗Power Dissipation | 125mW |
| Description & Applications | Chip resistor networks MNR34 (3216×4 size) Features 1) Convex electrodes Easy to check the fillet after soldering is finished. 2) Compatible with a wide range of mounting equipment. Squared corners make it excellent for mounting using image recognition devices. 3) High-density mounting Can be mounted even more densely than four 3216 chips (MCR18). Also, the number of parts and cost of mounting have been reduced. 4) ROHM resistors have approved ISO-9001 certification. |
| 描述与应用 | 片式电阻网络 MNR34（3216×4大小） 特点 1）凸电极 易焊接完成后，检查圆角。 2）具有广泛的安装设备兼容。 方角使优秀的安装使用图像识别装置。 3）高密度安装可比四3216芯片（MCR18）安装得更密集。此外，部件的数量和安装成本也降低了。 4）ROHM电阻已通过ISO-9001认证。 |
| 规格书PDF |
