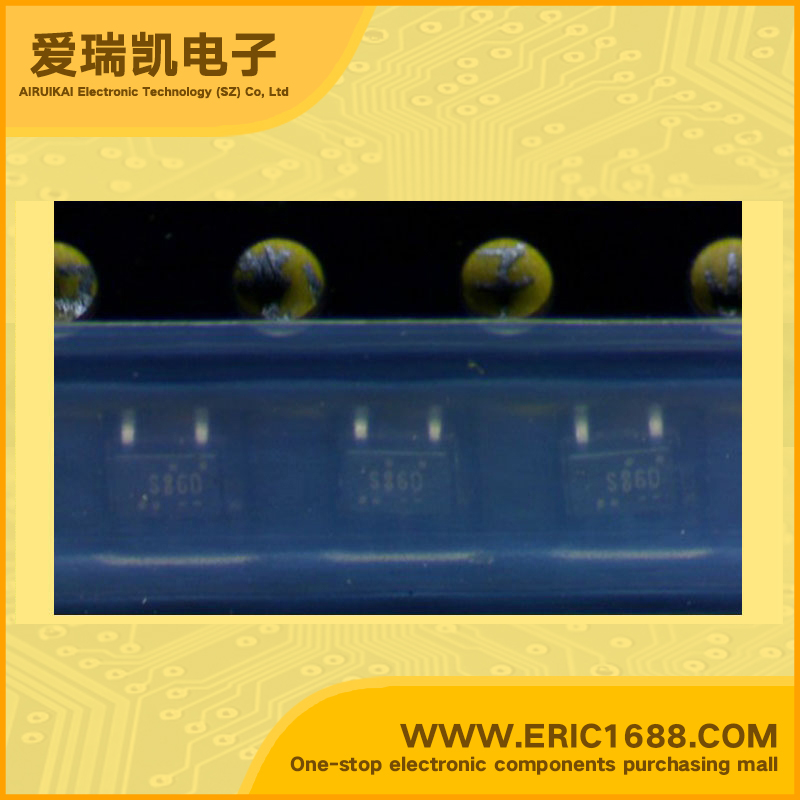

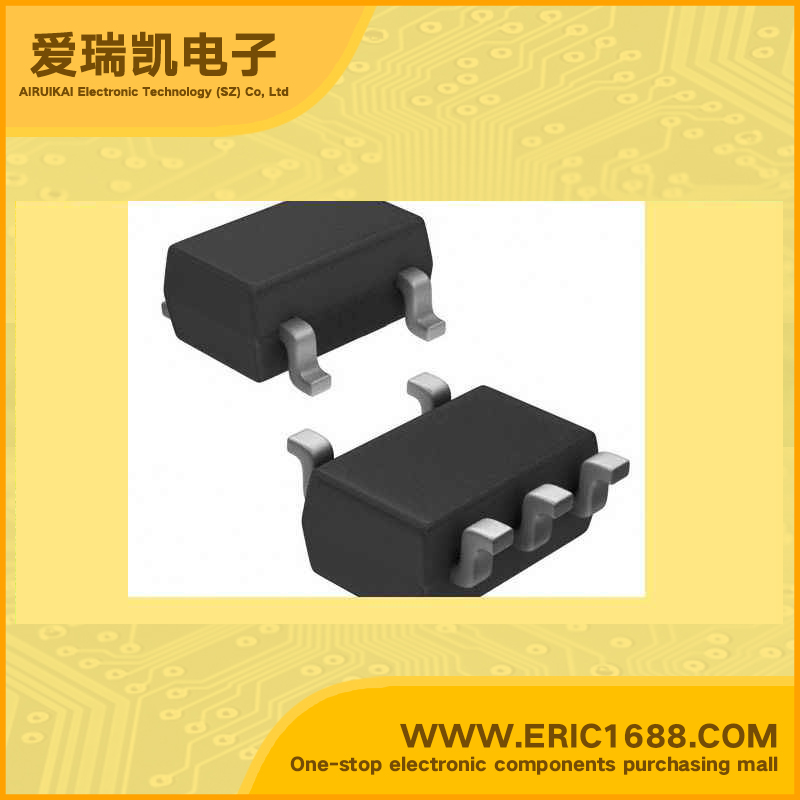

集成电路IC 异或门 NC7S86P5X SOT-353/SC70-5/SC-88A marking/标记 S86
| 逻辑类型Logic Type | 异或门 XOR Gate |
| 电路数Number of Circuits | 1 |
| 输入数Number of Inputs | 2 |
| 电源电压VccVoltage - Supply | 2V~6V |
| 静态电流IqCurrent - Quiescent (Max) | 1uA |
| 输出高，低电平电流Current - Output High, Low | -2.6mA，2.6mA |
| 低逻辑电平Logic Level - Low | 0.5V |
| 高逻辑电平Logic Level - High | 1.5V |
| 传播延迟时间@Vcc，CLMax Propagation Delay @ V, Max CL | 7ns @ 6V，50pF |
| Description & Applications | 2-Input Exclusive-OR Gate ；Features Tiny Logic HS 2-Input Exclusive-OR Gate Space saving SOT23 or SC70 5-lead package Ultra small MicroPak leadless package High Speed; tPD 4.5 ns typ Low Quiescent Power; ICC < 1 µA Balanced Output Drive; 2 mA IOL, −2 mA IOH Broad VCC Operating Range; 2V–6V Balanced Propagation Delays Specified for 3V operation |
| 描述与应用 | 2输入异或门;特性 微型逻辑HS2输入异或门 节省空间的SOT23或SC705引线封装 超小型的MicroPak无铅封装 高速; TPD4.5 ns（典型值） 静态功耗低; ICC<1μA 平衡输出驱动;毫安毫安IOH IOL，-2 VCC工作电压范围宽;2V-6V 平衡传输延时 3V工作电压规定 |
