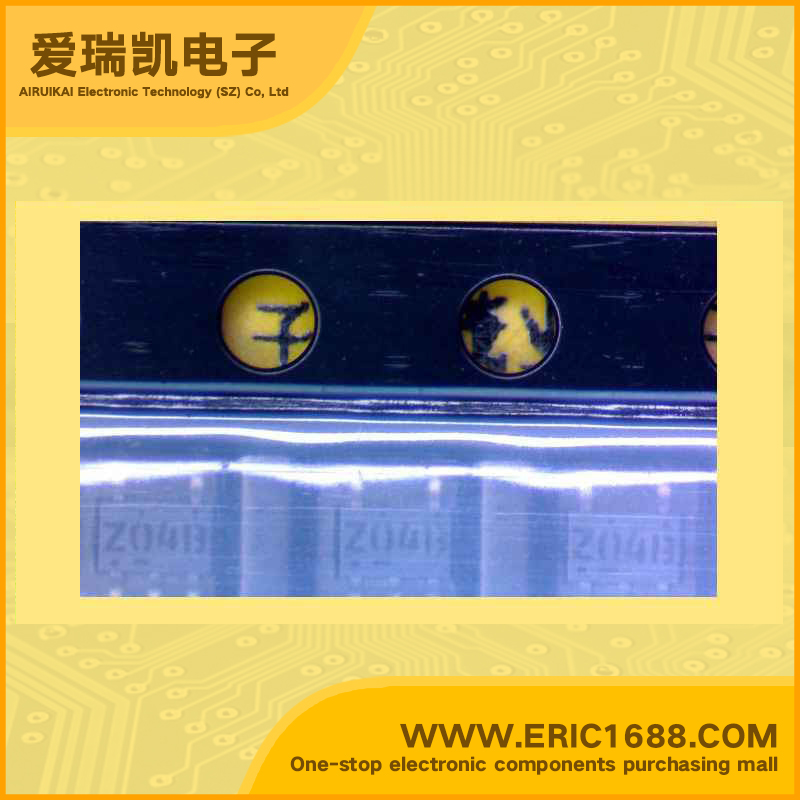

集成电路IC 反相器 NC7SZ04P5X SOT-353/SC70-5/SC-88A marking/标记 204F
| 逻辑类型Logic Type | 反相器 Inverter |
| 电路数Number of Circuits | 1 |
| 输入数Number of Inputs | 1 |
| 电源电压VccVoltage - Supply | 1.65V~5.5V |
| 静态电流IqCurrent - Quiescent (Max) | 2uA |
| 输出高，低电平电流Current - Output High, Low | -32mA，32mA |
| 低逻辑电平Logic Level - Low | 0.1V~0.55V |
| 高逻辑电平Logic Level - High | 1.7V~3.8V |
| 传播延迟时间@Vcc，CLMax Propagation Delay @ V, Max CL | 4.3ns @ 5V，50pF |
| Description & Applications | Features TinyLogic UHS 2-Input NOR Gate Space saving SOT23 or SC70 5-lead package Ultra High Speed: tPD 2.4 ns typ into 50 pF at 5V VCC High Output Drive: ±24 mA at 3V VCC Broad VCC Operating Range: 1.8V–5.5V Matches the performance of LCX when operated@3.3V VCC Power down high impedance inputs/output Overvoltage tolerant inputs facilitate 5V to 3V translation Patented noise/EMI reduction circuitry implemented |
| 描述与应用 | 特性 TinyLogicUHS2输入或非门 节省空间的SOT23或SC705引线封装 超高速：TPD2.4 ns（典型值）为50 pF的5V VCC 高输出驱动器：±24 mA在3V VCC 宽广的VCC工作电压范围：1.8V-5.5V 时的性能相匹配的LCX 运行@3.3V VCC 掉电高阻抗输入/输出 过压容限输入方便5V3V转换 专利的噪声/ EMI抑制电路实施 |
