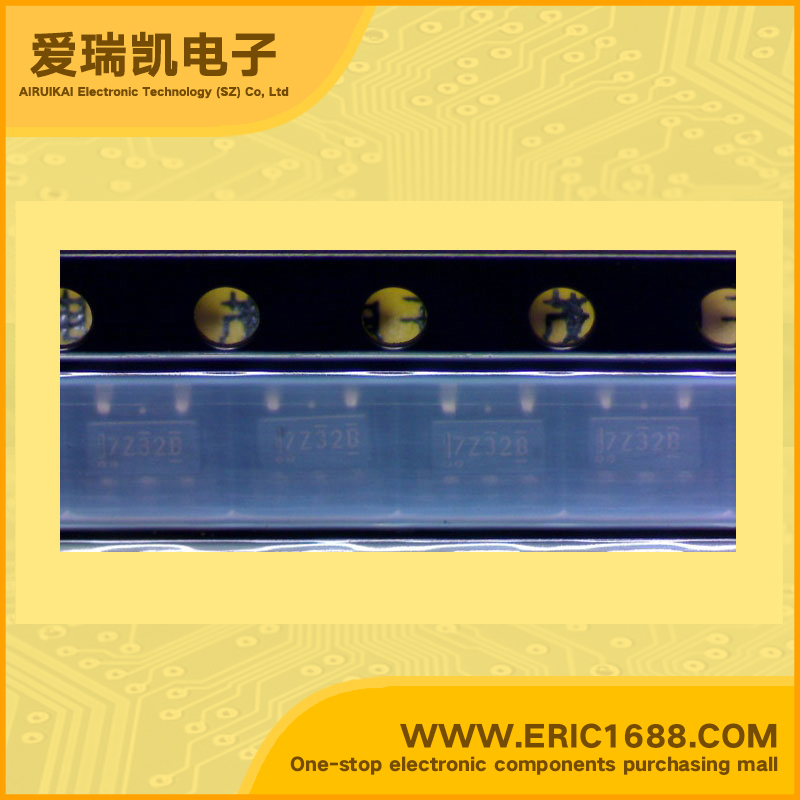

集成电路IC 或门 NC7SZ32M5X SOT-153/SC-74A/SOT23-5 marking/标记 7Z32
| 逻辑类型Logic Type | 或门 OR Gate |
| 电路数Number of Circuits | 1 |
| 输入数Number of Inputs | 2 |
| 电源电压VccVoltage - Supply | 1.65V~5.5V |
| 静态电流IqCurrent - Quiescent (Max) | 2uA |
| 输出高，低电平电流Current - Output High, Low | -32mA，32mA |
| 低逻辑电平Logic Level - Low | 0.1V~0.55V |
| 高逻辑电平Logic Level - High | 1.55V~3.8V |
| 传播延迟时间@Vcc，CLMax Propagation Delay @ V, Max CL | 4.5ns @ 5V，50pF |
| Description & Applications | Features TinyLogic UHS 2-Input OR Gate Space saving SOT23 or SC70 5-lead package Ultra small MicroPak leadless package Ultra high speed tPD 2.4 ns Typ into 50 pF at 5V VCC High output drive ±24 mA at 3V VCC Broad VCC operating range 1.65V–5.5V Matches the performance of LCX when operated at 3.3V VCC Power down high impedance inputs/output Overvoltage tolerant inputs facilitate 5V–3V translation Patented noise/EMI reduction circuitry implemented |
| 描述与应用 | 特性 TinyLogicUHS2输入或门 节省空间的SOT23或SC705引线封装 超小型的MicroPak无铅封装 超高速TPD2.4 ns（典型值）为50 pF的5V VCC 高输出驱动±24 mA在3V VCC 宽VCC工作范围1.65V-5.5V 操作时的性能相匹配的LCX在3.3V VCC 掉电高阻抗输入/输出 过压容限输入方便5V-3V转换 专利的噪声/ EMI抑制电路实施 |
