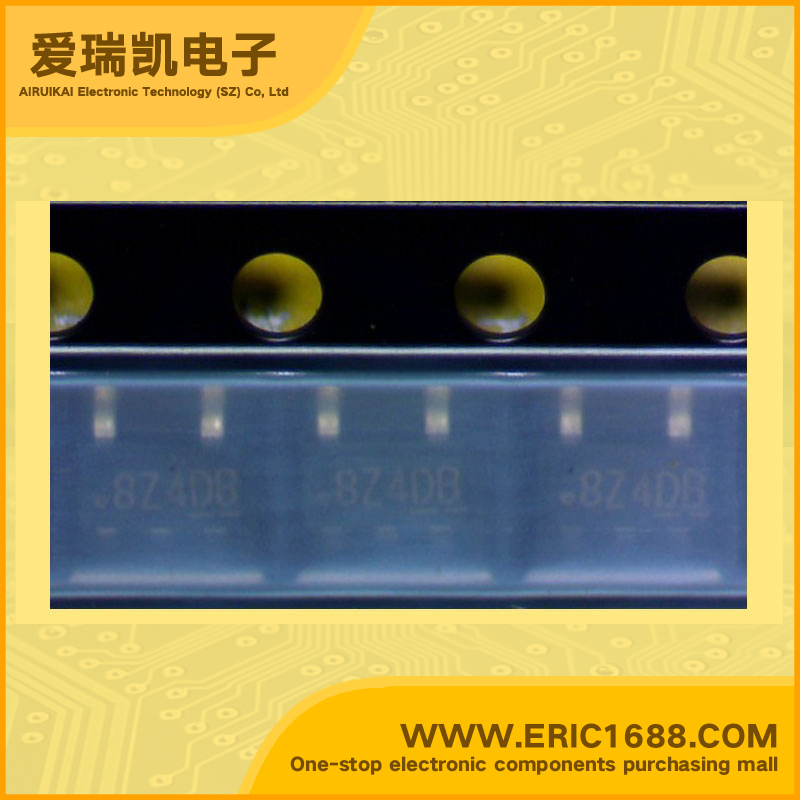

NC7SZD384M5X 解码器、多路复用器、信号开关 SOT-153/SOT23-5/SC-74A 标记8Z40
| 逻辑类型Logic Type | 总线开关 Bus Switch |
| 电路数Number of Circuits | 1 x 1:1 |
| 输入数Number of Inputs | 1 |
| 电源电压VccVoltage - Supply | |
| 静态电流IqCurrent - Quiescent (Max) | 单电源 Single Supply |
| 输出高，低电平电流Current - Output High, Low | 4 V ~ 5.5 V |
| 低逻辑电平Logic Level - Low | The NC7SZD384 provides 1-bit of high-speed CMOS TTLcompatible bus switch. The low on resistance of the switch allows inputs to be connected to outputs with minimal propagation delay and without generating additional ground bounce noise. The device is organized as a 1-bit switch with a bus enable (OE) signal. When OE is LOW, the switch is on and Port A is connected to Port B. When OE is HIGH, the switch is open and a high-impedance state exists between the two ports. Reduced voltage drive to the gate of the FET switch permits nominal level shifting of 5V to 3.3V through the switch. Space saving SOT23 or SC70 5-lead package Ultra small MicroPakTM leadless package 5Ω switch connection between two ports Designed to be used in level-shifting applications Minimal propagation delay through the switch Low ICC Zero bounce in flow-through mode Control inputs compatible with TTL level |
| 高逻辑电平Logic Level - High | NC7SZD384提供1位高速CMOS TTL兼容总线开关。低电阻的开关以最小的传播延迟和不产生额外的接地反弹噪声允许输入连接到输出。该设备被组织为一个1位开关与一个总线使能信号（OE）。当OE为低电平时，开关是开着的端口A连接到端口B.当OE为高电平时，开关打开和高阻抗状态之间存在着两个端口。降低效应管开关栅极的驱动电压场允许5V到3.3V的标称电平通过开关。 节省空间的SOT23或SC70 5引脚封装 MicroPakTM超小型无铅封装 5Ω交换机连接两个端口之间 设计用于电平转换的应用 最小的传播延迟通过开关 低ICC 零流量反弹模式 控制输入与TTL电平兼容 |
| 传播延迟时间@Vcc，CLMax Propagation Delay @ V, Max CL | |
