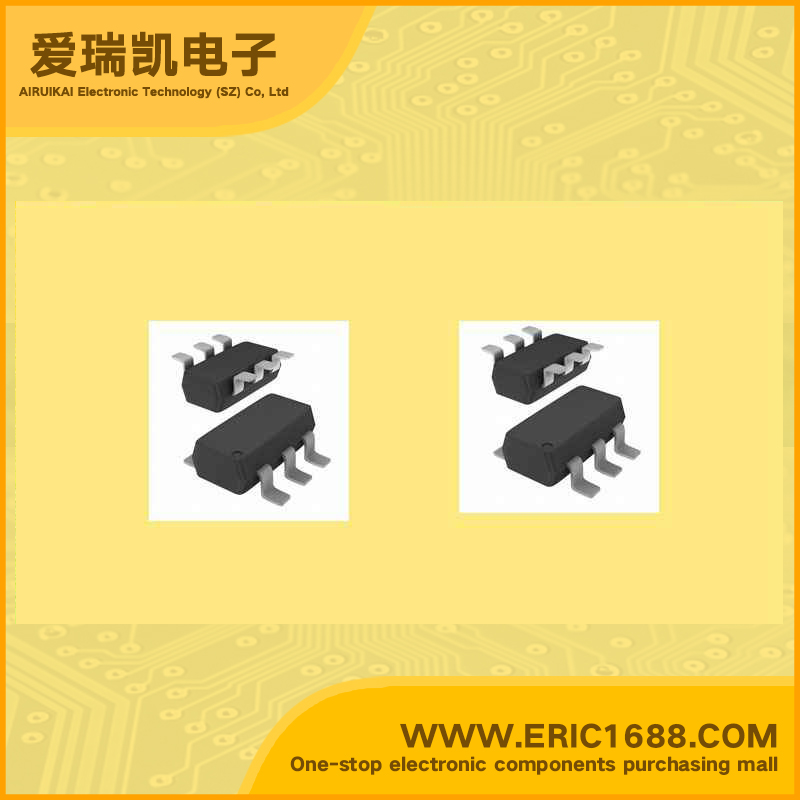

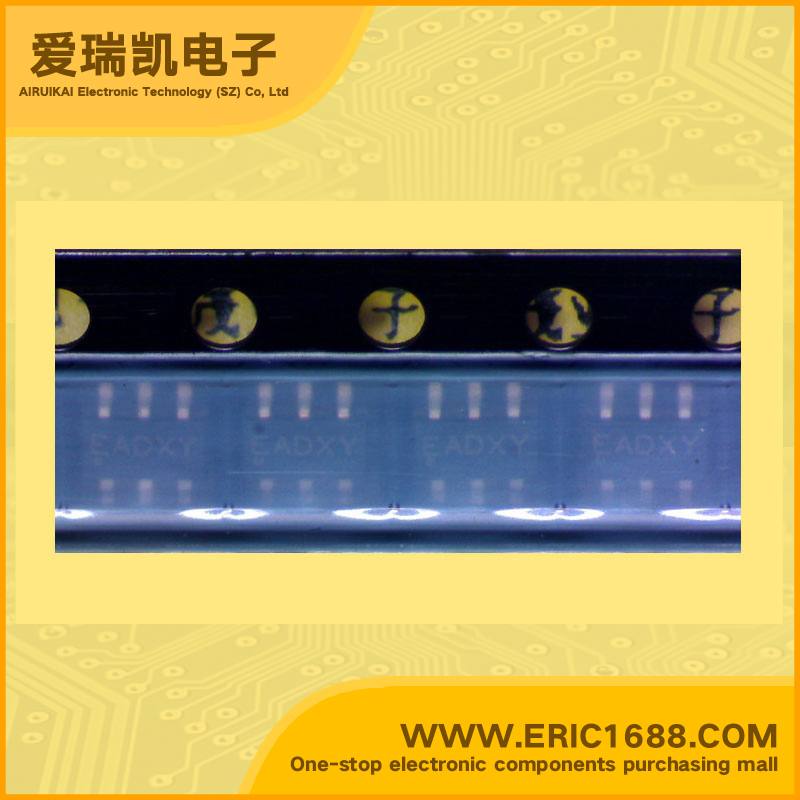

NCP1729SN35T1 电荷泵电源IC SOT-163/SOT23-6 marking/标记 EAD 开关电容电压型逆变器
| 功能Type | 切换式电容器（充电泵），反相 Switched Capacitor (Charge Pump),Inverting |
| 工作电压Voltage - Supply | 1.15V ~ 5.5V |
| 输出电压Out Voltage | -1.15V ~ -5.5V，2.3V ~ 11V |
| 输出电流Output Current | 50mA |
| 效率Efficiency(%) | 96% |
| 震荡频率Oscillation Frequency | 35kHz |
| Description & Applications | FEATURES • Switched Capacitor Voltage Inverter • Operating Voltage Range of 1.15 V to 5.5 V • Output Current Capability in Excess of 50 mA • Low Current Consumption of 122 A • Power Saving Shutdown Input for a Reduced Current of 0.4 A • Operation at 35 kHz • Low Output Resistance of 26 • Space Saving TSOP−6 Package • Pb−Free Package is Available Typical Applications • LCD Panel Bias • Cellular Telephones • Pagers • Personal Digital Assistants • Electronic Games • Digital Cameras • Camcorders • Hand Held Instruments |
| 描述与应用 | 特点 •开关电容电压型逆变器 •为1.15 V至5.5 V的工作电压范围 •超过50毫安的电流输出能力 •低电流消耗为122？ •省电关断输入为降低电流为0.4？ •在35 kHz的操作 •低输出电阻为26？ •节省空间TSOP-6封装 •无铅包装是可用 典型应用 •液晶面板偏置 •蜂窝电话 •寻呼机 •个人数字助理（PDA） •电子游戏 •数码相机 •摄像机 •手持式仪表 |
| 规格书PDF |
