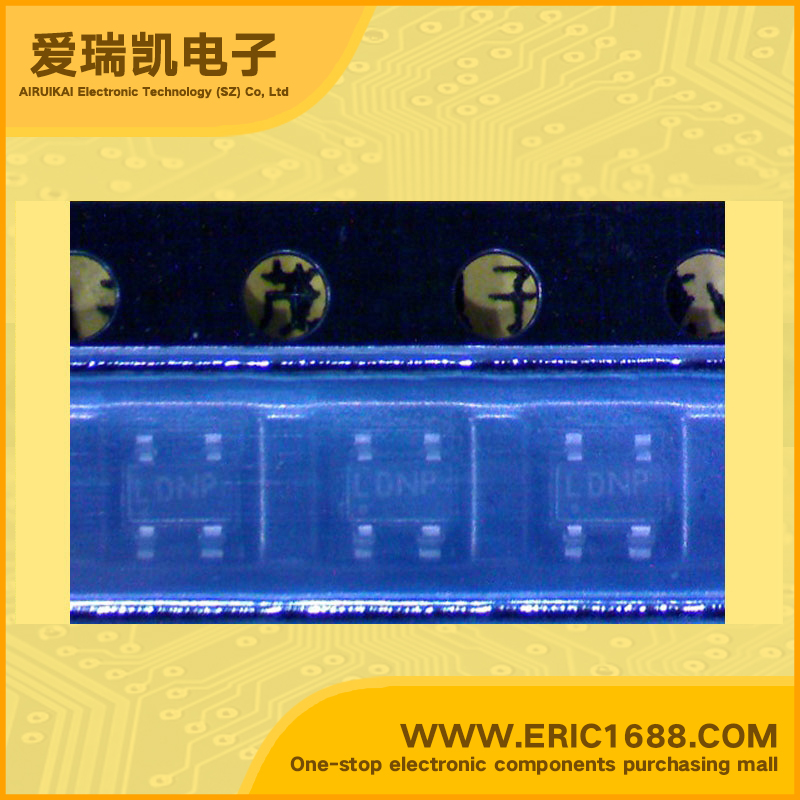

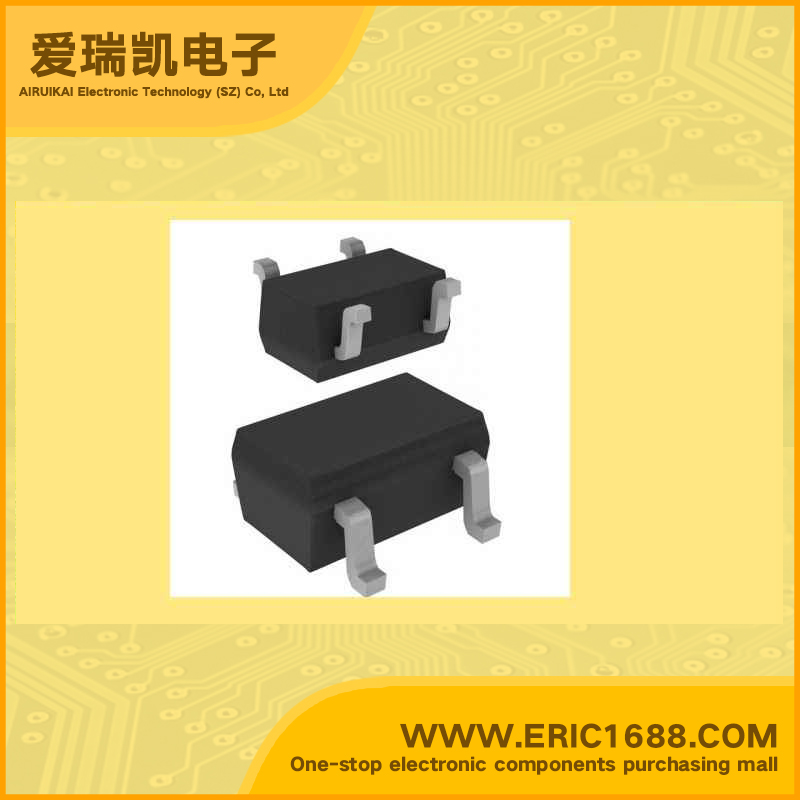

NCP562SQ33T1 LDO电压调整器/稳压电源IC 3.3V 230mV/0.23V 带使能脚EN/CE SOT-343/SC82/SC70-4 marking/标记 LON 短路保护 过热保护
| 电路数量Number of Regulators | 1 |
| 输入电压VINVoltage - Input | 6V |
| 输出电压VOUTVoltage - Output | 3.3V |
| 输出电流IoCurrent - Output | 80mA |
| 最大压降VDOVoltage - Dropout | 230mV/0.23V |
| 带使能脚EN/CE(ON/OFF功能)With Enable Pin | 有 Yes |
| 最大耗散功率PdPower dissipation | |
| Description & Applications | 80 mA CMOS Low Iq Low-Dropout Voltage Regulator ;•Low Quiescent Current of 2.5 A Typical • Low Output Voltage Option • Output Voltage Accuracy of 2.0% • Temperature Range of −40°C to 85°C • NCP562 Provides an Enable Pin • Battery Powered Instruments • Hand−Held Instruments • Camcorders and Cameras |
| 描述与应用 | 80毫安CMOS低Iq 低压差电压 稳压器;•低静态电流为2.5典型 •低输出电压选项 •输出电压精度为2.0％ •温度范围为-40°C至85°C NCP562提供了一个使能引脚 •电池供电的仪器 •手持式仪表 •摄像机和照相机 |
| 规格书PDF |
