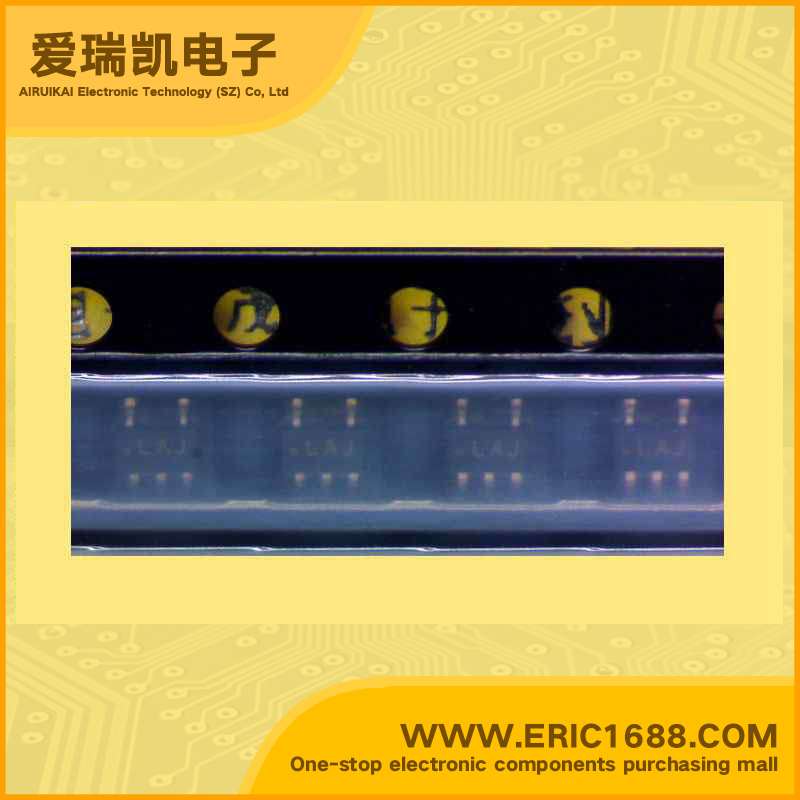

集成电路IC 反相施密特触发器 NL17SZ14DFT2G SOT-353/SC-88A/SC70-5 marking/标记 LAJ
| 逻辑类型Logic Type | 反相施密特触发器 Inverting Schmitt trigger |
| 电路数Number of Circuits | 1 |
| 输入数Number of Inputs | 1 |
| 电源电压VccVoltage - Supply | 1.65V~5.5V |
| 静态电流IqCurrent - Quiescent (Max) | 1uA |
| 输出高，低电平电流Current - Output High, Low | -32mA，32mA |
| 低逻辑电平Logic Level - Low | 0.2V~1.2V |
| 高逻辑电平Logic Level - High | 1.4V~3.6V |
| 传播延迟时间@Vcc，CLMax Propagation Delay @ V, Max CL | 5.9ns @ 5V，50pF |
| Description & Applications | Features Single Inverter with Schmitt Trigger Tiny SOT- 353 and SOT- 553 Packages Source/Sink 24 mA at 3.0 V Over-Voltage Tolerant Inputs and Outputs Pin For Pin with NC7SZ14 Designed for 1.65 V to 5.5 V VCC Operation Chip Complexity: FET = 20 |
| 描述与应用 | 特性 单逆变与施密特触发器 微型SOT-353和SOT-553封装 源/汇24 mA在3.0 V 过电压宽容输入和输出 引脚对引脚NC7SZ14 为1.65 V至5.5 VVCC运行 芯片的复杂性：FET= 20 |
| 规格书PDF |
