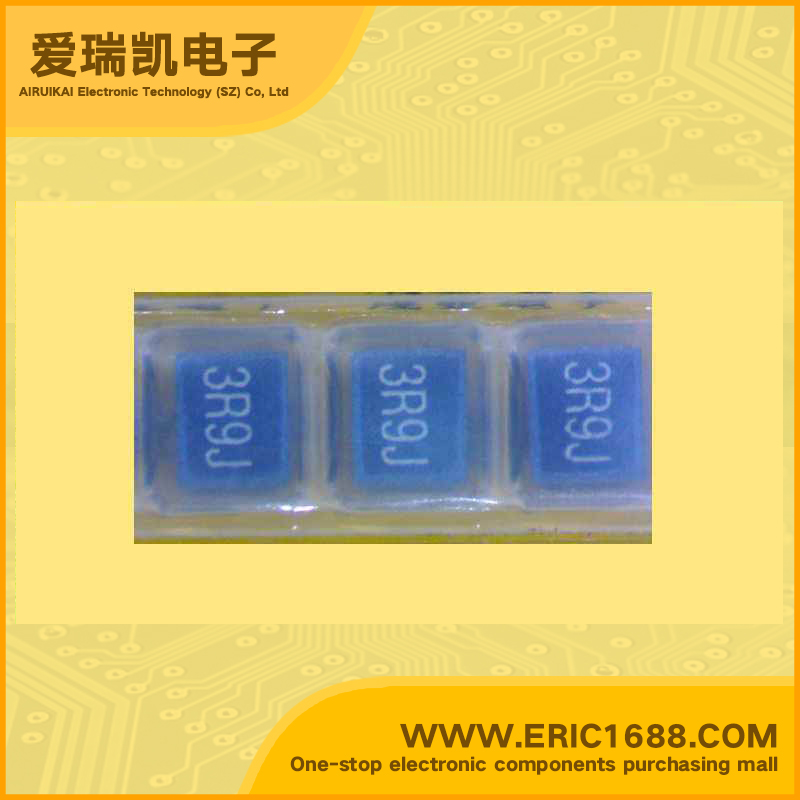

小功率电感 NL322522T-3R9J 3.3UH 3225-3R9J 3R9J
| 电感值Inductance | 3.3UH |
| 误差Tolerance | ±5% |
| 额定电流Current Rating | 250mA |
| 饱和电流Current - Saturation | |
| 不同频率时的Q值Q @ Frequency | 30 @ 7.96MHz |
| 自振谐频率SRFFrequency - Self Resonant | 55MHz |
| DC电阻DCRDC Resistance (DCR) | 1.3Ω/Ohm |
| 屏蔽Shielding | 屏蔽 Shielded |
| Description & Applications | NL Series NL3225 Type FEATURES • The NL series are available in 5 form factors ranging from 2016 to 5650. • Utilizing a miniaturized winding structure, these products provide high Q characteristics. • Inductance tolerance is ±5 percent. |
| 描述与应用 | NL系列NL3225类型 特点 NL系列5种形式因素，从2016到5650不等。 •利用微型绕组结构，具有高Q特性。 •电感容差为±5％。 |
| 规格书PDF |
