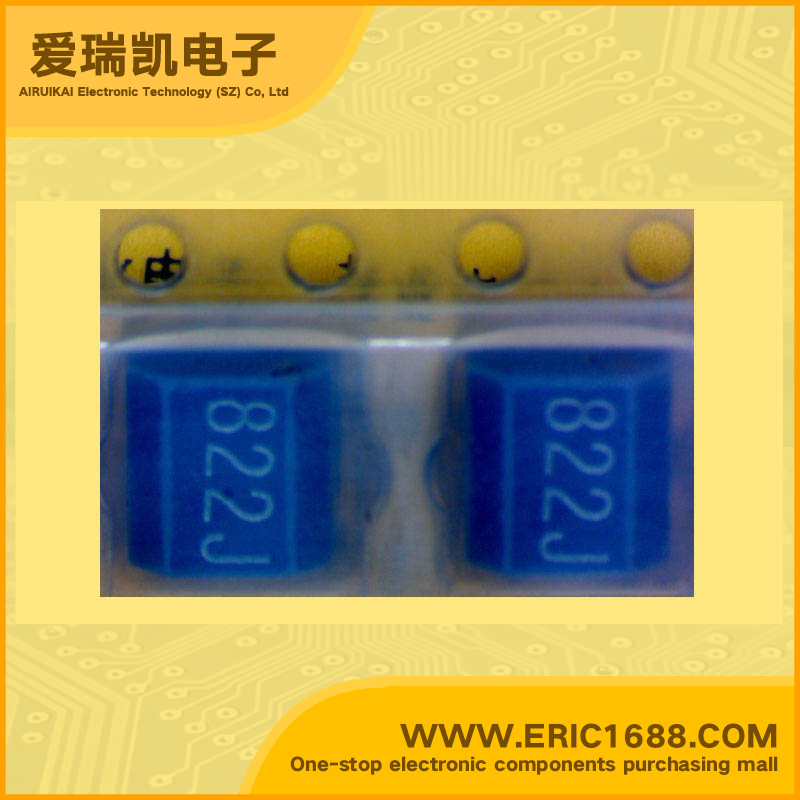

小功率电感 NL565050T-822J 8.2MH 5650-822J 822J
| 电感值Inductance | 8.2MH |
| 误差Tolerance | ±5% |
| 额定电流Current Rating | 28mA |
| 饱和电流Current - Saturation | |
| 不同频率时的Q值Q @ Frequency | 30 @ 0.252MHz |
| 自振谐频率SRFFrequency - Self Resonant | 0.6MHz |
| DC电阻DCRDC Resistance (DCR) | 125Ω/Ohm |
| 屏蔽Shielding | 无屏蔽 Unshielded |
| Description & Applications | NL Series NL5650 Type FEATURES • The NL series are available in ranging from 2016 to 5650 type. • Utilizing a miniaturized winding structure, these products provide high Q characteristics. • Inductance tolerance is ±5%. |
| 描述与应用 | NL系列NL5650类型 特点 NL系列，从2016到5650型。 •利用微型绕组结构，具有高Q特性。 •电感容差为±5％。 |
