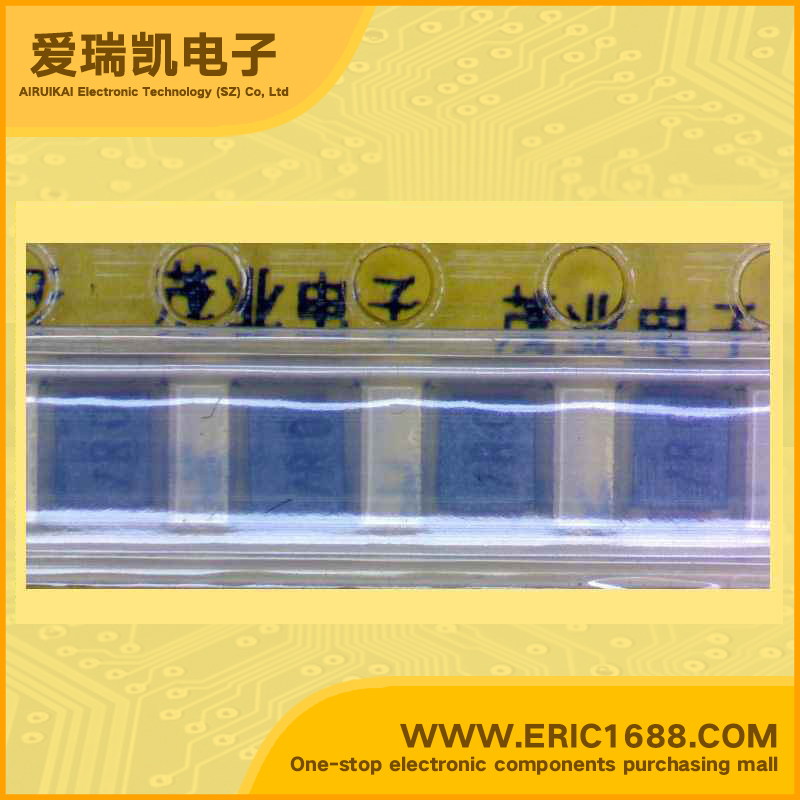

小功率电感 NLCV25T-1R0M-PF 1UH 2520-1R0M
| 电感值Inductance | 1UH |
| 误差Tolerance | ±20% |
| 额定电流Current Rating | 475mA |
| 饱和电流Current - Saturation | |
| 不同频率时的Q值Q @ Frequency | 20 @ 7.96MHz |
| 自振谐频率SRFFrequency - Self Resonant | 200MHz |
| DC电阻DCRDC Resistance (DCR) | 0.34Ω/Ohm |
| 屏蔽Shielding | 无屏蔽 Unshielded |
| Description & Applications | NLCV Series NLCV25 Type FEATURES • Provides high Q while using 252018 size winding construction. • Environmentally friendly due to use of recyclable plastic (ther-moplastic). • Logo omitted to simplify production. • Maintains interchangeability with earlier NL product series. • NLV series are E-6 products, while NLCV and NLFV series are E-3 products. |
| 描述与应用 | NLCV系列NLCV25类型 特点 •提供高Q值的同时使用252018大小绕组结构。 •环保，使用可回收的塑料（热塑料）。 •标志省略，以简化生产。 •保持与早期的NL系列产品的互换性。 |
| 规格书PDF |
