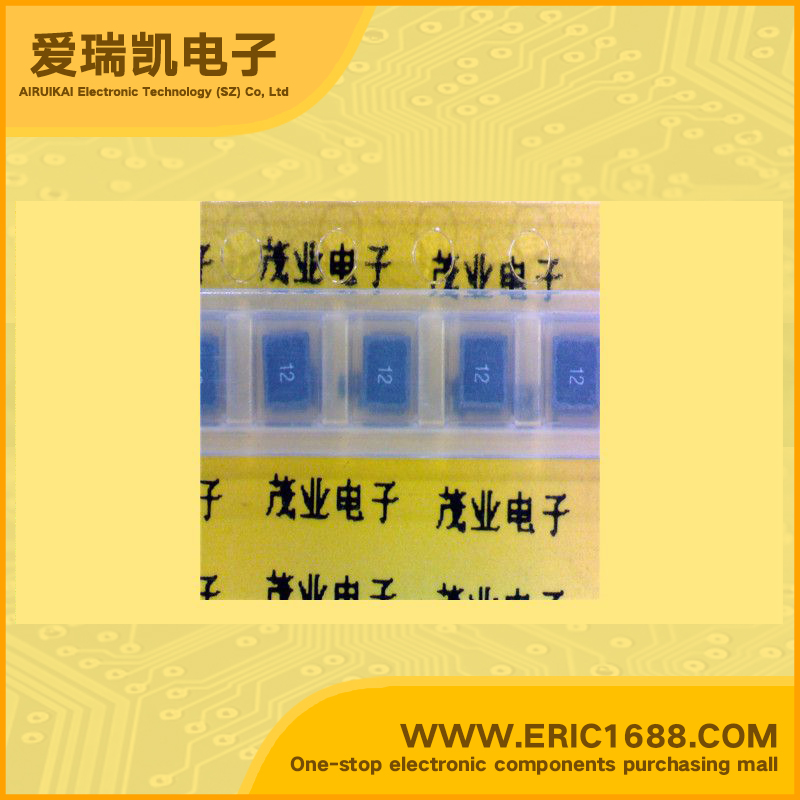

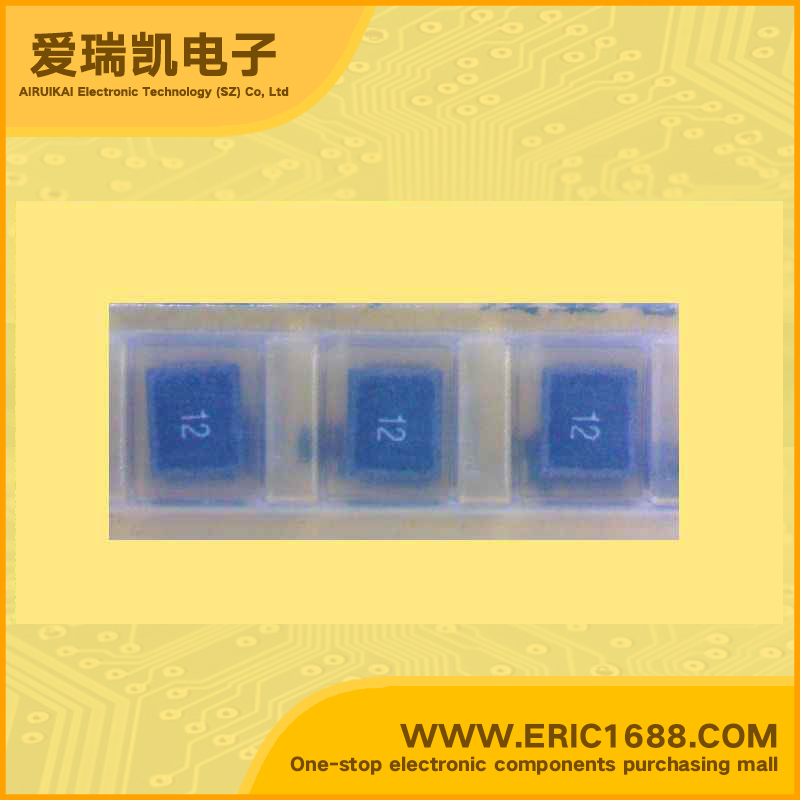

小功率电感 NLH252018T-012J 12nH 2520-12NJ 12
| 电感值Inductance | 12nH |
| 误差Tolerance | ±5% |
| 额定电流Current Rating | 500mA |
| 饱和电流Current - Saturation | |
| 不同频率时的Q值Q @ Frequency | 25 @ 100MHz |
| 自振谐频率SRFFrequency - Self Resonant | 2.05GHz |
| DC电阻DCRDC Resistance (DCR) | 0.27Ω/Ohm |
| 屏蔽Shielding | |
| Description & Applications | NLH Series NLH2520 Type FEATURES • Supports operating frequencies of up to 2GHz with nominal inductance values from 10 to 820nH. • Compact winding structure ensures high Q. • Inductance tolerance is ±5 percent. |
| 描述与应用 | NLH NLH2520系列类型 特点 •运行频率高达2GHz，电感值从10到820nH容。 •紧凑型绕组结构，确保高Q值. •电感容差为±5％。 |
| 规格书PDF |
