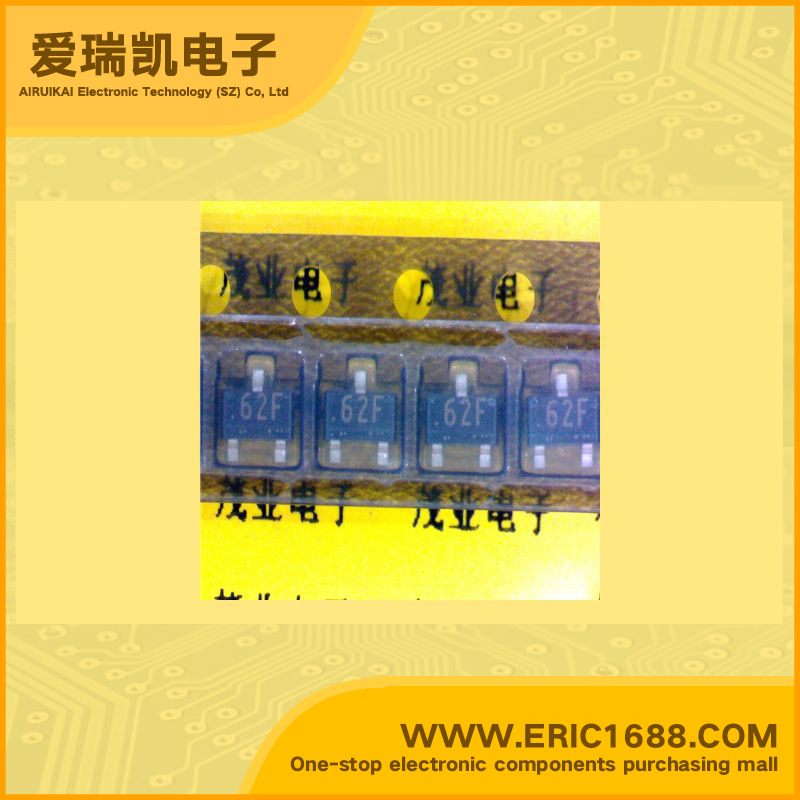

NNCD6.2F 瞬态抑制二极管TVS/ESD 0.2W/200mW SOT-23-6.2V 标记6.2F
| 极性Polarization | 单向 Unidirectional |
| 反向关断电压/工作电压VRWMReverse Standoff Voltage | |
| 反向击穿电压VBRBreakdown Voltage | 6.2V |
| 峰值脉冲耗散功率PPPMPeak Pulse Power Dissipation | 100W |
| 峰值脉冲电流IPPmPeak Forward Surge Current | |
| 额定耗散功率PdPower dissipation | 0.2W/200mW |
| Description & Applications | Features • E.S.D NOISE CLIPPING DIODES • ELECTROSTATIC DISCHARGE NOISE CLIPPING DIODES (DOUBLE TYPE, ANODE COMMON) 3PIN MINI MOLD • assures the minimum endurance of 30 kV. • achieves a series over a wide range • External interface circuit E.S.D protection. • Circuits for Waveform clipper, Surge absorber. |
| 描述与应用 | 特点 •E.S.D噪音限幅二极管 •静电放电噪声削波二极管（double类型，共阳极）3PIN MINI模具 •保证30千伏最小耐力。 •产品达到一系列在很宽的范围内 •外部接口电路E.S.D保护。 •波形剪，浪涌吸收电路。 |
| 规格书PDF |
