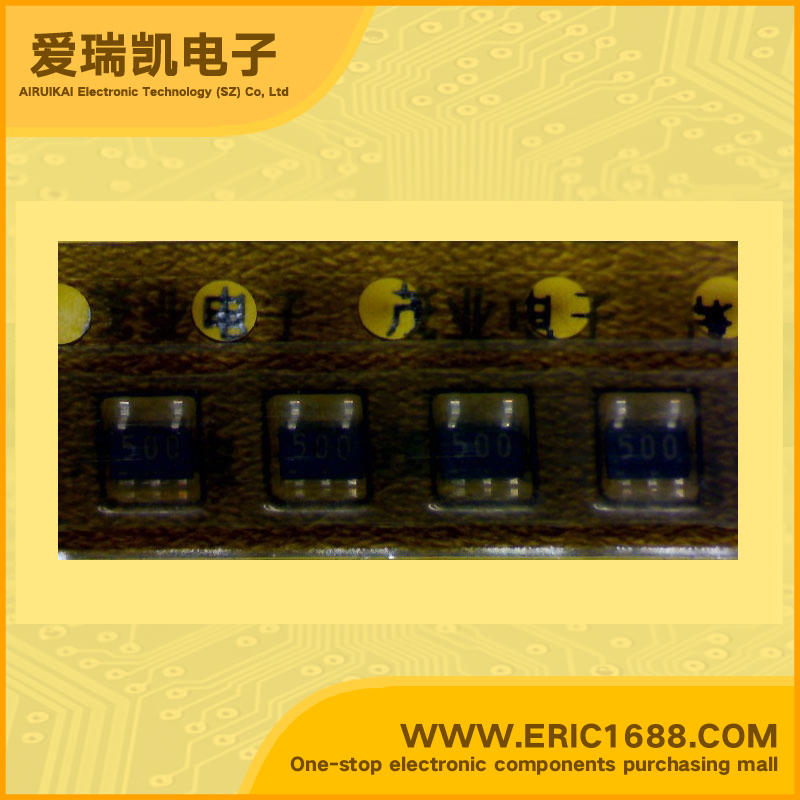

NSAD500H 瞬态抑制二极管TVS/ESD 0.2W/200mW SOT353-8V 标记500
| 极性Polarization | 单向 Unidirectional |
| 反向关断电压/工作电压VRWMReverse Standoff Voltage | |
| 反向击穿电压VBRBreakdown Voltage | 8V |
| 峰值脉冲耗散功率PPPMPeak Pulse Power Dissipation | 2W |
| 峰值脉冲电流IPPmPeak Forward Surge Current | |
| 额定耗散功率PdPower dissipation | 0.2W/200mW |
| Description & Applications | FEATURES • ELECTROSTATIC DISCHARGE SURGE ABSORBER DEVICES QUAD TYPE: COMMON ANODE SC-88A PACKAGE • Base on the electrostatic discharge immunity test (IEC 61000-4-2)product assures the minimum endurance of 8 kV. • Capacitance: 3.5 pF TYP.It’s an extraordinarily small capacitance. • With 4 elements mounted (common anode).Mounted in the SC-88A package, the products can achiever high density and automatic packaging. APPLICATIONS • USB2.0, IEEE1394, 100B external interface circuit ESD protection. |
| 描述与应用 | 特点 •静电放电浪涌吸收设备QUAD类型：共阳极SC-88A封装 •基础上的静电放电抗扰度试验（IEC 61000-4-2）产品保证了最低续航为8 kV。 •电容：3.5 pF（典型值）。这是一个非常小的电容。 •安装包含4个元素（共阳极）。产品可安装在SC-88A封装，成功者高密度和自动包装。 应用 •USB2.0，IEEE1394，100B外部接口电路的ESD保护。 |
