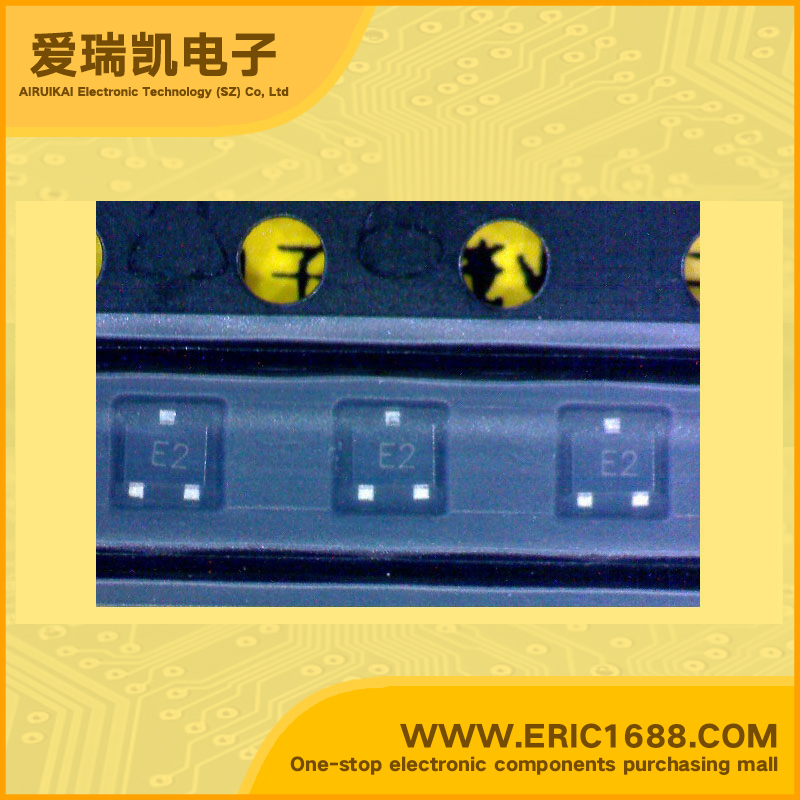

PESD5V0S2UQ 瞬态抑制二极管TVS/ESD 5V 15A SOT-323/SOT663 标记E2
| 极性Polarization | 单向 Unidirectional |
| 反向关断电压/工作电压VRWMReverse Standoff Voltage | 5V |
| 反向击穿电压VBRBreakdown Voltage | 6.4V |
| 峰值脉冲耗散功率PPPMPeak Pulse Power Dissipation | 150W |
| 峰值脉冲电流IPPmPeak Forward Surge Current | 15A |
| 额定耗散功率PdPower dissipation | |
| Description & Applications | Features • Double ESD protection diodes in SOT663 package • Uni-directional ESD protection of up to two lines • Max. peak pulse power: Ppp = 150 W at tp = 8/20 µs • Low clamping voltage: V(CL)R = 20 V at Ipp = 15 A • Low reverse leakage current: IRM < 1 nA • ESD protection > 30 kV • IEC 61000-4-2; level 4 (ESD) • IEC 61000-4-5 (surge); Ipp = 15 A at tp = 8/20 µs. |
| 描述与应用 | 特性 •在SOT663封装双ESD保护二极管 •单向ESD保护可至双线 •最大峰值脉冲功率：Ppp=150 W@tp= 8/20μs •低钳位电压：V（CL）R =20 V在IPP= 15 A •低反向漏电流：IRM<1 nA •ESD保护>30千伏 •IEC61000-4-2第4级（ESD） •IEC61000-4-5（浪涌）; IPP= 15 A@tp= 8/20μs |
| 规格书PDF |
