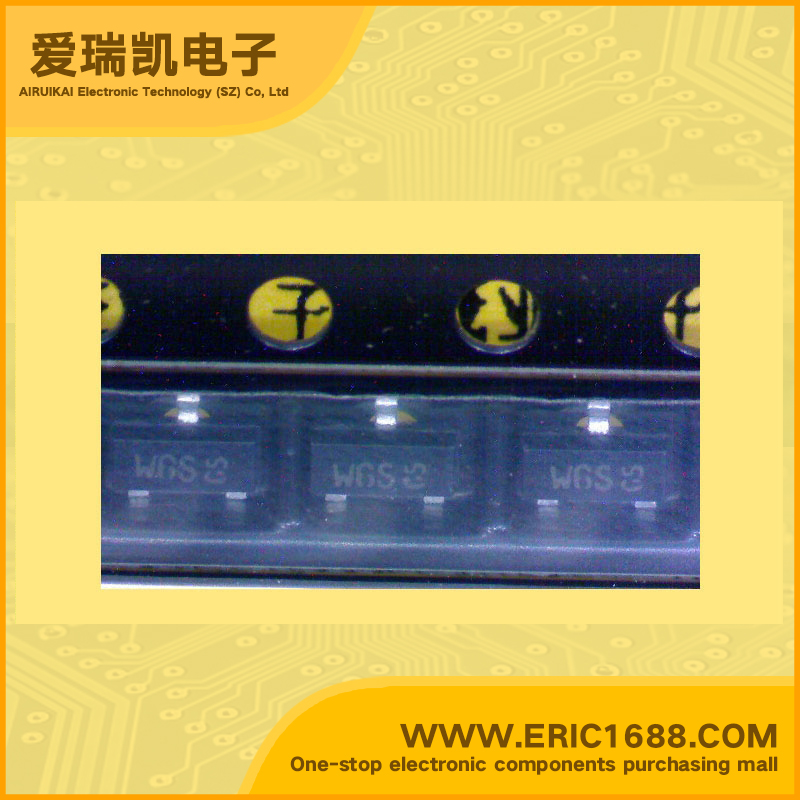

PMBFJ176 P沟道结型场效应管 30 V －2.0~－35.0mA SOT-23 marking/标记 W6S
| 最大源漏极电压VdsDrain-Source Voltage | 30 V |
| 栅源极击穿电压V(BR)GSGate-Source Voltage | 30 V |
| 漏极电流(Vgs=0V)IDSSDrain Current | －2.0~－35.0mA |
| 关断电压Vgs(off)Gate-Source Cut-off Voltage | 1.0~4.0V |
| 耗散功率PdPower Dissipation | 300mW/0.3W |
| Description & Applications | PMBFJ176 P-channel silicon field-effect transistors DESCRIPTION Silicon symmetrical p-channel junction FETs in plastic microminiature SOT23 envelopes. They are intended for application with analogue switches, choppers, commutators etc. using SMD technology. A special feature is the interchangeability of the drain and source connections. |
| 描述与应用 | PMBFJ176 P-沟道硅场效应晶体管 说明 硅对称p沟道结场效应晶体管的塑料超小型SOT23封装。他们的目的是为应用模拟开关，换向器等采用SMD技术。比较特别的是漏极和源极连接的互换性。 |
| 规格书PDF |
