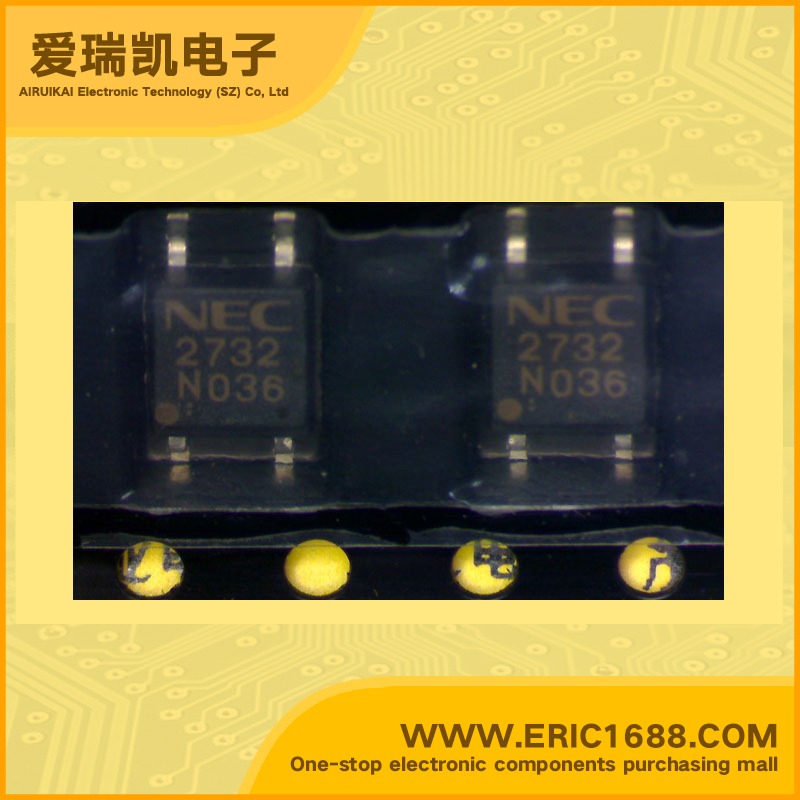

光电耦合器 晶体管，光电输出 PS2732-1-E3 SOT-143 marking/标记 2732
| 通道数Number of Channels | 1 |
| 输入类型Input Type | DC |
| 电压 - 隔离Voltage - Isolation | 2500Vrms |
| 电流传输比（最小值）Current Transfer Ratio (Min) | 1500% @ 1mA |
| 电流传输比（最大值）Current Transfer Ratio (Max) | |
| 电压 - 输出Voltage - Output | 300V |
| 电流 - 输出/通道Current - Output / Channel | 150mA |
| 电流 - DC 正向 (If)Current - DC Forward (If) | 50mA |
| Vce 饱和值（最大值）Vce Saturation (Max) | 1V |
| 输出类型Output Type | 达林顿晶体管 Darlington |
| Description & Applications | Features • HIGH ISOLATION VOLTAGE HIGH COLLECTOR TO EMITTER VOLTAGE SOP PHOTOCOUPLER • HIGH ISOLATION VOLTAGE BV: 2.5 k Vr.m.s. MIN • HIGH COLLECTOR TO EMITTER VOLTAGE VCEO: 300 V MIN: PS2732-1,-2,-4 VCEO: 350 V MIN: PS2733-1,-2,-4 • SOP (SMALL OUT-LINE PACKAGE) • ULTRA HIGH CURRENT TRANSFER RATIO CTR: 4000% TYP • TAPING PRODUCT NUMBER (Only -1 Type) PS2732-1-E3, F3 PS2733-1-E3, F3 APPLICATIONS • Interface circuit for various instrumentations and control equipment. • REPLACEMENT FOR RELAY IN PULSE-DIAL CIRCUIT • HIGH CTR CIRCUIT APPLICATIONS |
| 描述与应用 | 特点 •高隔离电压高集电极到发射极电压SOP光耦合器 •高隔离电压BV：2.5 K Vr.m.s.最小 •高集电极到发射极电压 VCEO：300 V最小：PS2732-1，-2，-4 VCEO：350 V最小：PS2733-1，-2，-4 •SOP（小输出线封装） •超高电流传输比CTR：4000％TYP •录音产品号码（只有-1型） PS2732-1-E3，F3 PS2733-1-E3，F3 应用 •各种仪器仪表和控制设备的接口电路。 •更换继电器脉冲拨号电路 •高CTR电路应用 |
| 规格书PDF |
