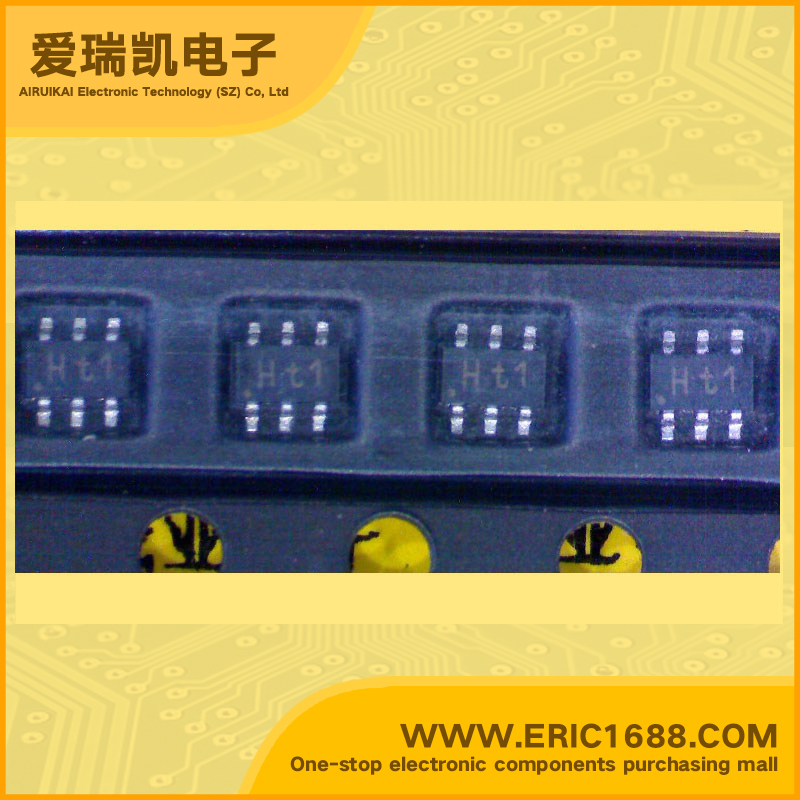

PUMH11 NPN+NPN复合带阻尼三极管 50V 100mA 30 300mW/0.3W SOT-363/SC-88/SC70-6 标记Ht1 开关电路 逆变器 接口电路 驱动电路
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 50V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 50V |
| 集电极连续输出电流IC Collector Current(IC) | 100mA |
| Q1基极输入电阻R1 Input Resistance(R1) | 10KΩ/Ohm |
| Q1基极-发射极输入电阻R2 Base-Emitter Resistance(R2) | 10KΩ/Ohm |
| Q1电阻比(R1/R2) Q1 Resistance Ratio | 1 |
| Q2基极输入电阻R1 Input Resistance(R1) | 10KΩ/Ohm |
| Q2基极-发射极输入电阻R2 Base-Emitter Resistance(R2) | 10KΩ/Ohm |
| Q2电阻比(R1/R2) Q2 Resistance Ratio | 1 |
| 直流电流增益hFE DC Current Gain(hFE) | 30 |
| 截止频率fT Transtion Frequency(fT) | |
| 耗散功率Pc Power Dissipation | 300mW/0.3W |
| Description & Applications | Features • NPN resistor-equipped transistors; • Transistors with different polarity and built-in bias resistors R1 and R2 (typ. 10 kΩ each) • No mutual interference between the transistors • Simplification of circuit design • Reduces number of components and board space APPLICATIONS • Especially suitable for space reduction in interface and driver circuits • Inverter circuit configurations without use of external resistors. |
| 描述与应用 | 特点 •NPN电阻配备晶体管; •晶体管不同极性和内置的偏置电阻R1和R2（典型值10KΩ/Ohm的） •晶体管之间没有相互干扰 •简化电路设计 •减少元件数量和电路板空间 应用 •特别适用于空间减少接口和驱动电路 •逆变器电路配置，而无需使用外部电阻器 |
