PZT2907A PNP三极管 -60V -600mA/- 0.6A 200MHz 100~300 -400mV/-0.4V SOT-223/TO-261AA marking/标记 2907A 开关和放大
| 集电极-基极反向击穿电压V(BR)CBOCollector-Base Voltage(VCBO) | -60V |
| 集电极-发射极反向击穿电压V(BR)CEOCollector-Emitter Voltage(VCEO) | −60V |
| 集电极连续输出电流ICCollector Current(IC) | −600mA/- 0.6A |
| 截止频率fTTranstion Frequency(fT) | 200MHz |
| 直流电流增益hFEDC Current Gain(hFE) | 100~300 |
| 管压降VCE（sat）Collector-Emitter SaturationVoltage | -400mV/-0.4V |
| 耗散功率PcPoWer Dissipation | 1.5W |

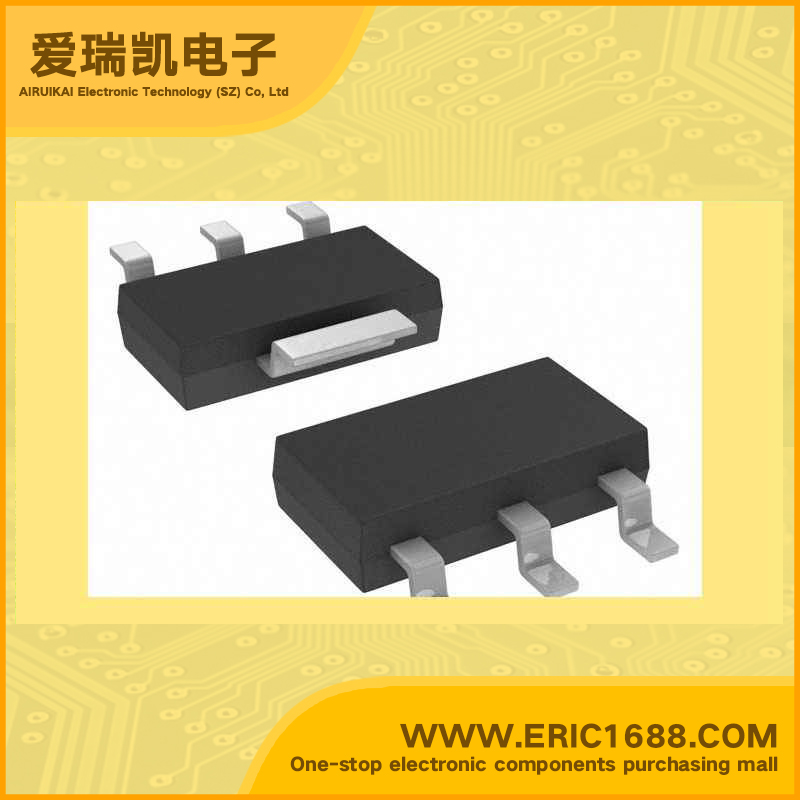

| Description & Applications | PNP Silicon Epitaxial transistor i This PNP Silicon Epitaxial transistor is designed for use in linear and switching applications. The device is housed in the SOT-223 package which is designed for medium power surface mount applications. • Complement to PZT2222AT1 • The SOT-223 package can be soldered using wave or reflow |
| 描述与应用 | PNP硅外延晶体管 这PNP硅外延晶体管线性和开关应用中使用而设计的。该设备是设在SOT-223封装，是专为中等功率表面贴装应用。 •互补型PZT2222AT1 •SOT-223封装，可以焊接使用波或回流 |
| 规格书PDF |
