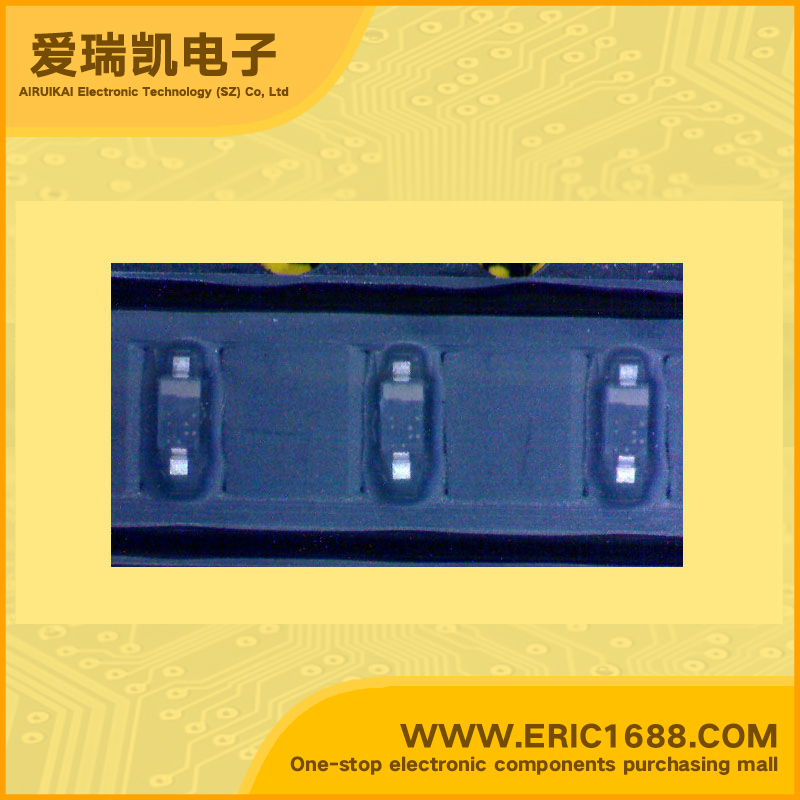

RD5.6UM 稳压二极管 5.6V 200mW/0.2W SOD523/0603-5.6V marking/标记 B2 恒定电压/恒定电流/浪涌吸收器
| 额定齐纳电压Vz(V)Zener Voltage 最小min. | 5.47V |
| 平均Typ. | 5.6V |
| 最大max. | 5.75V |
| 误差Tolerance | |
| 最大齐纳阻抗Zz(Ω)Dynamic Impedance | 80Ω/ohm |
| 最大反向漏电流IR(uA)Reverse Current | 5uA |
| 最大耗散功率PdPower dissipation | 200mW/0.2W |
| Description & Applications | • Type RD2.0UM to RD39UM Series are 2-pin Ultra Super Mini Mold Package zener diodes possessing an allowable power dissipation of 150 mW. • Sharp Breakdown characteristics • VZ; Applied E24 standard • Circuits for Constant Voltage, Constant Current, Waveform clipper, Surge absorber, etc |
| 描述与应用 | •RD2.0UM至RD39UM系列齐纳二极管功耗为150 mW。 •VZ;应用E24标准 •恒定电压，恒定电流，波形剪，浪涌吸收器等电路 |
| 规格书PDF |
