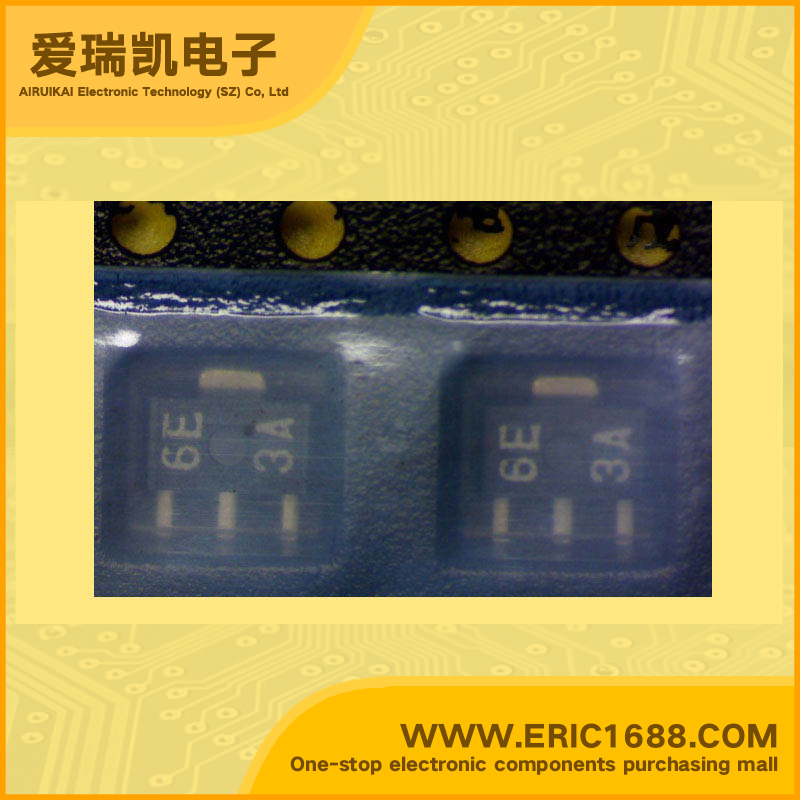

RH5RL56AA-T1 LDO电压调整器/稳压电源IC 5.6V 60mV SOT-89 marking/标记 6E 短路保护 过热保护

热销商品

产品描述
电路数量Number of Regulators1
输入电压VINVoltage - Input 12V
输出电压VOUTVoltage - Output5.6V
输出电流IoCurrent - Output1mA
最大压降VDOVoltage - Dropout60mV
带使能脚EN/CE(ON/OFF功能)With Enable Pin无 No
最大耗散功率PdPower dissipation300mW/0.3W
Description & ApplicationsVOLTAGE REGULATOR ;•Ultra-low Quiescent Current TYP. 1.1µA (R×5RL30A, VIN=5.0V) • Small Dropout Voltage TYP. 30mV (R×5RL50A, IOUT=1mA) • Low Temperature-Drift Coefficient of Output Voltage TYP. ±100 ppm/˚C • Excellent Line Regulation. TYP. 0.1%/V • Output Voltage Stepwise setting with a step of 0.1V in the range of 2.0V to 6.0V is possible (refer to Selection Guide). • High Accuracy Output Voltage ±2.5% • Power source for battery-powered equipment. • Power source for cameras, video instruments such as camcorders, VCRs, and hand- held communication equipment. • Precision voltage references.
描述与应用电压调节器;•超低静态电流典型值。 1.1μA(R×5RL30A,VIN=5.0V) •小降电压TYP。 30mV的(R×5RL50A,IOUT=1毫安) •低温度漂移系数的输出电压典型值。 ±100 PPM /˚C •卓越的线路调整。 TYP。 0.1%/ V •输出电压每步0.1V,在2.0V至6.0V的范围内逐步设置 (参见选型指南)。 •高输出电压精度为±2.5% •电池供电设备的电源。 •电源的摄像机,摄录一体机,录像机和手持通信设备,如视频工具。 •精密电压基准。
规格书PDF
