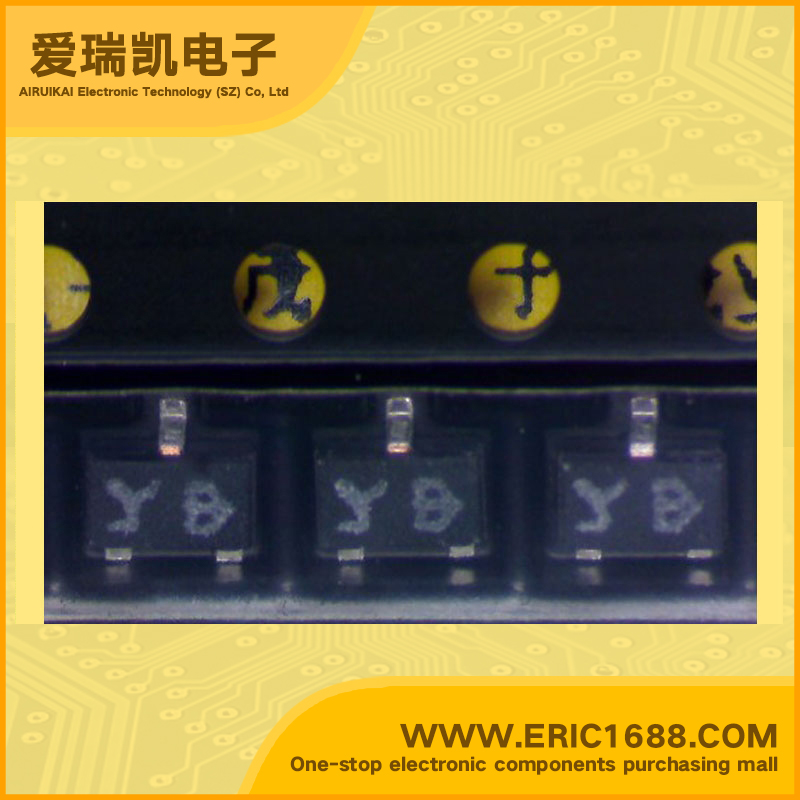

RN2104 带阻尼PNP三极管 -50V -100mA/-0.1A 80 0.1W/100mW SOT-523/SC-75/SSM 标记YD 开关电路，逆变器，接口电路，驱动电路
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | -50V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | -50V |
| 集电极连续输出电流IC Collector Current(IC) | -100mA/-0.1A |
| 基极输入电阻R1 Input Resistance(R1) | 47KΩ/Ohm |
| 基极-发射极输入电阻R2 Base-Emitter Resistance(R2) | 47KΩ/Ohm |
| 电阻比(R1/R2) Resistance Ratio | 1 |
| 直流电流增益hFE DC Current Gain(hFE) | 80 |
| 截止频率fT Transtion Frequency(fT) | 200MHz |
| 耗散功率Pc Power Dissipation | 0.1W/100mW |
| Description & Applications | Features • Transistor Silicon PNP Epitaxial Type (PCT Process) • Built-in bias resistors • Simplified circuit design • Fewer parts and simplified manufacturing process • Complementary to RN1101~RN1106 Applications • Switching, Inverter Circuit, Interface Circuit and Driver Circuit Applications |
| 描述与应用 | 特点 •晶体管的硅PNP外延型（PCT工艺） •内置偏置电阻 •简化电路设计更少的部件和简化制造工艺 •互补RN1101~~ RN1106 应用 •开关，逆变电路，接口电路和驱动器电路应用 |
| 规格书PDF |
