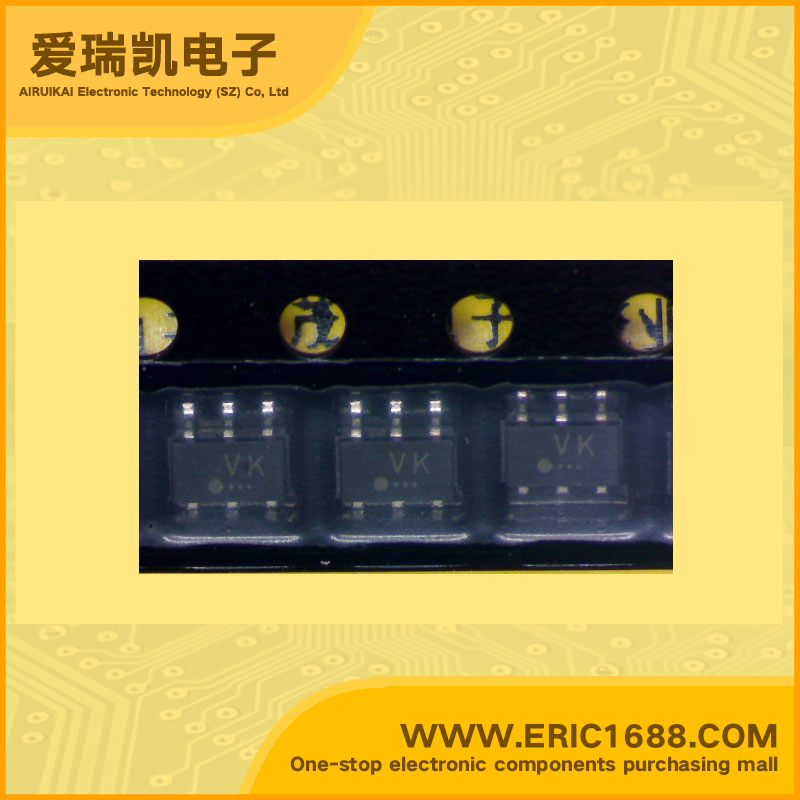

RN4610 NPN+PNP复合带阻尼三极管 -50V/50V -100mA/100mA 120~400/120~700 300mW/0.3W SOT-163/SM6/SOT23-6 标记VK 开关电路 逆变器 接口电路 驱动电路
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | -50V/50V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | -50V/50V |
| 集电极连续输出电流IC Collector Current(IC) | -100mA/100mA |
| Q1基极输入电阻R1 Input Resistance(R1) | 4.7KΩ/Ohm |
| Q1基极-发射极输入电阻R2 Base-Emitter Resistance(R2) | |
| Q1电阻比(R1/R2) Q1 Resistance Ratio | |
| Q2基极输入电阻R1 Input Resistance(R1) | 4.7KΩ/Ohm |
| Q2基极-发射极输入电阻R2 Base-Emitter Resistance(R2) | |
| Q2电阻比(R1/R2) Q2 Resistance Ratio | |
| 直流电流增益hFE DC Current Gain(hFE) | 120~400/120~700 |
| 截止频率fT Transtion Frequency(fT) | 200MHz/250MHz |
| 耗散功率Pc Power Dissipation | 300mW/0.3W |
| Description & Applications | Features • TOSHIBA Transistor Silicon PNP Epitaxial Type (PCT Process) Silicon NPN Epitaxial Type (PCT Process) • Includeing two devices in SM6 (super mini type with 6 leads) • With built-in bias resistors • Simplify circuit design • Reduce a quantity of parts and manufacturing process Applications • Switching, Inverter Circuit, Interface Circuit and Driver Circuit Applications. |
| 描述与应用 | 特点 •东芝晶体管的硅PNP外延型硅NPN外延型（PCT工艺）（PCT工艺） •包括，两台设备SM6（超迷你型6引线） •内置偏置电阻 •简化电路设计 •减少了部件数量和制造工艺 应用 •开关，逆变电路，接口电路和驱动器电路应用 |
