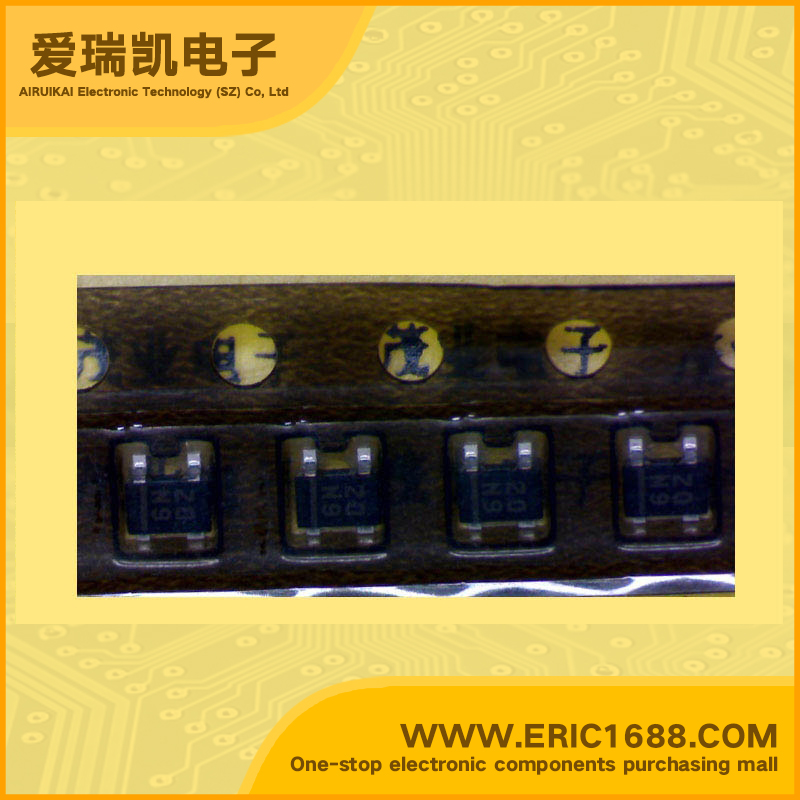

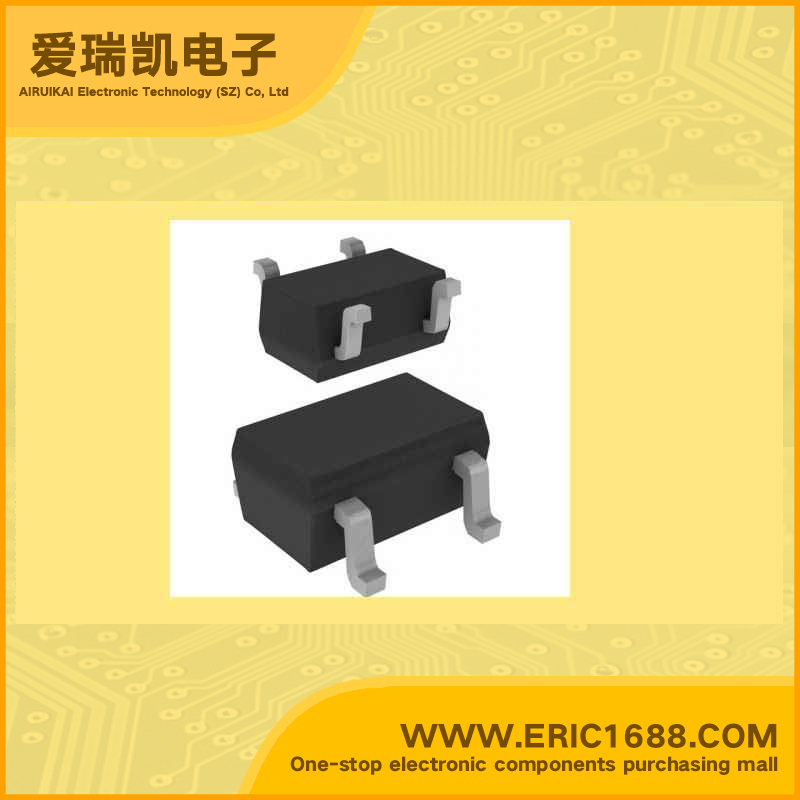

RQ5RW18CA-TR LDO电压调整器/稳压电源IC 1.8V 40mV 带使能脚EN/CE SOT-343/SC-82 marking/标记 6N 短路保护 过热保护
| 电路数量Number of Regulators | 1 |
| 输入电压VINVoltage - Input | 9V |
| 输出电压VOUTVoltage - Output | 1.8V |
| 输出电流IoCurrent - Output | 1mA |
| 最大压降VDOVoltage - Dropout | 40mV |
| 带使能脚EN/CE(ON/OFF功能)With Enable Pin | 有 Yes |
| 最大耗散功率PdPower dissipation | 150mW/0.15W |
| Description & Applications | SMALL PACKAGE VOLTAGE REGULATOR ;tra-Low Supply Current TYP. 1.5µA • Standby Current TYP. 0.1µA • Dropout Voltage TYP . 40mV (IOUT=1mA, RQ5RW30A/B) • Low Temperature-Drift Coefficient of •Output Voltage TYP. ±100ppm/˚C • Excellent Line Regulation TYP. 0.05%/V • High Accuracy Output Voltage ±2.0% • Power source for battery-powered equipment. • Power source for cameras, VCRs, camcorders, hand-held audio instruments and hand-held communication equipment. • Precision voltage references |
| 描述与应用 | 小封装电压稳压器;•超低电源电流的典型值。 1.5μA •待机电流典型值。 0.1μA •漏失电压TYP。 40MV（IOUT=1毫安，RQ5RW30A/ B） •低的温度-漂移系数的 •输出电压典型值。温度系数±100ppm/˚C •卓越的线路调整TYP。 0.05％/ V •高输出电压精度±2.0％ •电源源用于电池-动力的的设备。 •电源，摄像机，录像机，摄像机，手持音频设备和手持式通信设备。 •精密电压基准 |
| 规格书PDF |
