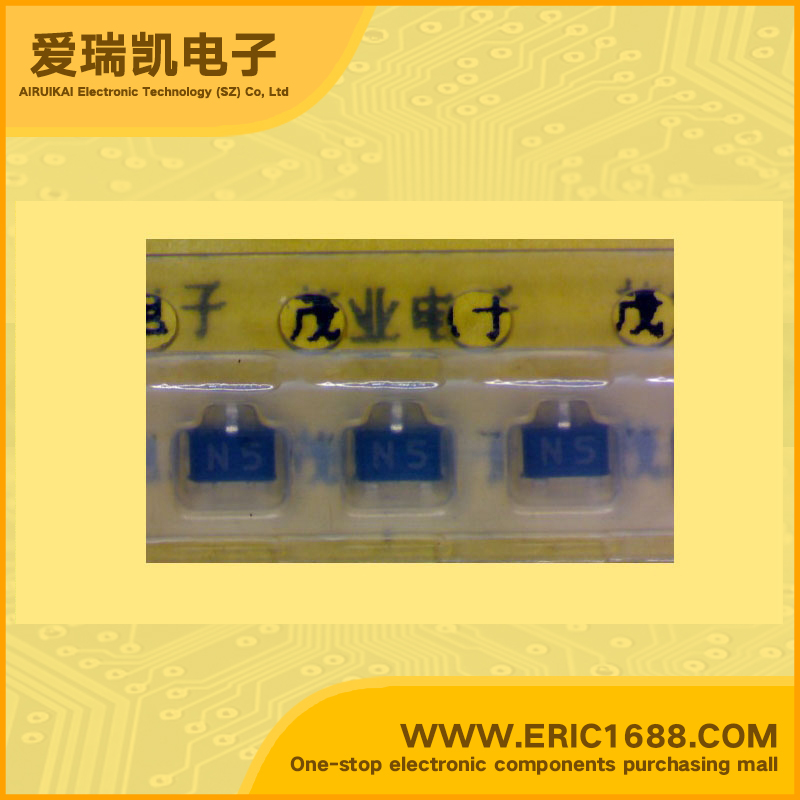

RT1N144M 带阻NPN三极管 50V 100mA/0.1A 10k 47k SOT-323/SC-70 marking/标记 N5
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 50V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 50V |
| 集电极连续输出电流IC Collector Current(IC) | 100mA/0.1A |
| 基极输入电阻R1 Input Resistance(R1) | 10KΩ/Ohm |
| 基极-发射极输入电阻R2 Base-Emitter Resistance(R2) | 47KΩ/Ohm |
| 电阻比(R1/R2) Resistance Ratio | 0.213 |
| 直流电流增益hFE DC Current Gain(hFE) | 50 |
| 截止频率fT Transtion Frequency(fT) | 200MHz |
| 耗散功率Pc Power Dissipation | 0.2W/200mW |
| Description & Applications | FEATURE ・Built-in bias resistor (R1=10kΩ,R2=47kΩ). |
| 描述与应用 | ·内置偏置电阻（R1=10kΩ,R2=47KΩ) |
