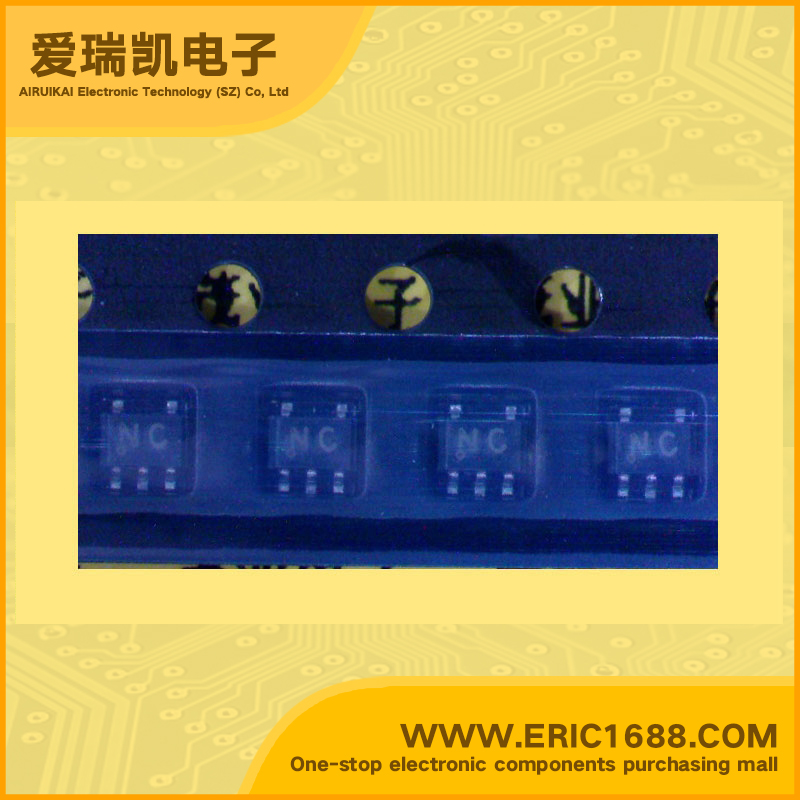

RT2N07M-T111-1 NPN+NPN复合带阻尼三极管 50V 100mA 33 150mW/0.15W SOT-353/SC-88A/SC70-5 标记NC 开关电路 逆变器 接口电路 驱动电路
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 50V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 50V |
| 集电极连续输出电流IC Collector Current(IC) | 100mA |
| Q1基极输入电阻R1 Input Resistance(R1) | 1.0KΩ/Ohm |
| Q1基极-发射极输入电阻R2 Base-Emitter Resistance(R2) | 10KΩ/Ohm |
| Q1电阻比(R1/R2) Q1 Resistance Ratio | 0.1 |
| Q2基极输入电阻R1 Input Resistance(R1) | 1.0KΩ/Ohm |
| Q2基极-发射极输入电阻R2 Base-Emitter Resistance(R2) | 10KΩ/Ohm |
| Q2电阻比(R1/R2) Q2 Resistance Ratio | 0.1 |
| 直流电流增益hFE DC Current Gain(hFE) | 33 |
| 截止频率fT Transtion Frequency(fT) | 200MHz |
| 耗散功率Pc Power Dissipation | 150mW/0.15W |
| Description & Applications | Features • COMPOUND TRANSISTOR WITH RESISTOR FOR SWITCHING APPLICATION SILICON NPN EPITAXIAL TYPE • Built-in bias resistor ( R1=1 KΩ/Ohm , R2=10KΩ/Ohm ) • Mini package for easy mounting Applications • Switching, Inverter Circuit, Interface Circuit and Driver Circuit Applications |
| 描述与应用 | 特点 •复合晶体管，电阻开关中的应用硅NPN外延型 •内置偏置电阻（R1=1千欧，R2=10KΩ/Ohm） •易于安装的小型封装 应用 •开关，逆变电路，接口电路和驱动器电路应用 |
