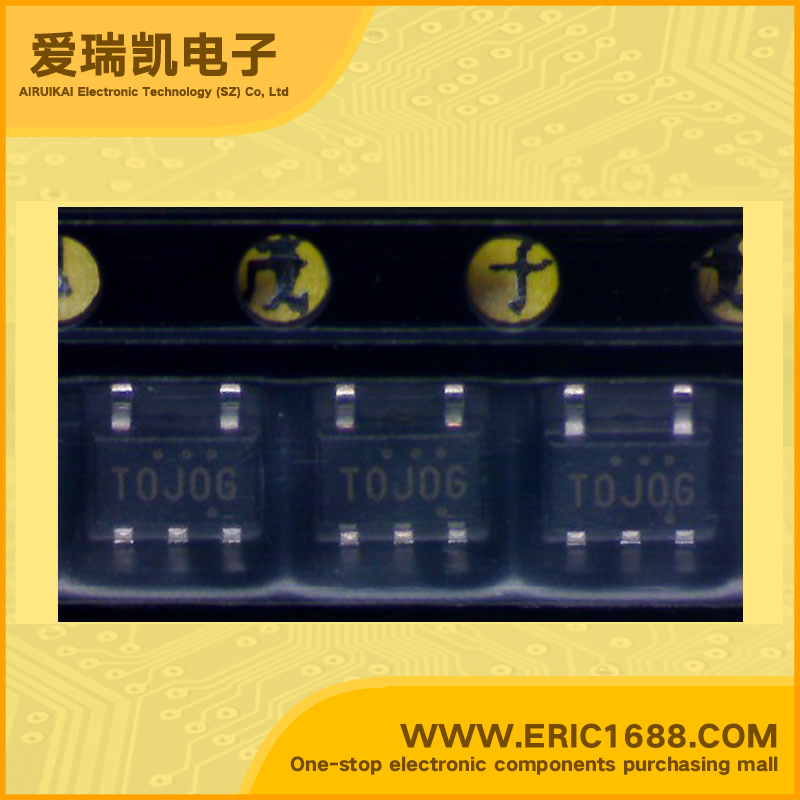

RT9702CB 电源分配开关电源IC SOT-153/SOT23-5 marking/标记 TOJ06 高侧电源开关
| 类型Type | 高端开关 high-side |
| 输出数Number of Outputs | 2 |
| Rds (On) | 80mΩ@5V |
| 内部开关Internal Switch(s) | 有 YES |
| 电流限制Current Limit | 0.5A~1.1A |
| 电压 - 输入Voltage - Input | 2~5.5V |
| Description & Applications | •80mΩ, 500mA/1.1A High-Side Power Switches •Compliant to USB Specifications •Built-In (Typically 80mΩ) N-Channel MOSFET •Output Can Be Forced Higher Than Input (Off-State) •Low Supply Current: 25μA Typical at Switch On State 0.1μA Typical at Switch Off State •Guaranteed 500mA/RT9702 and 1.1A/RT9702A Continuous Load Current •Wide Input Voltage Ranges: 2V to 5.5V •Open-Drain Fault Flag Output •Hot Plug-In Application (Soft-Start) •1.7V Typical Under-Voltage Lockout (UVLO) •Current Limiting Protection •Thermal Shutdown Protection •Reverse Current Flow Blocking (no “body diode) •Smallest SOT-25 Package Minimizes Board Space |
