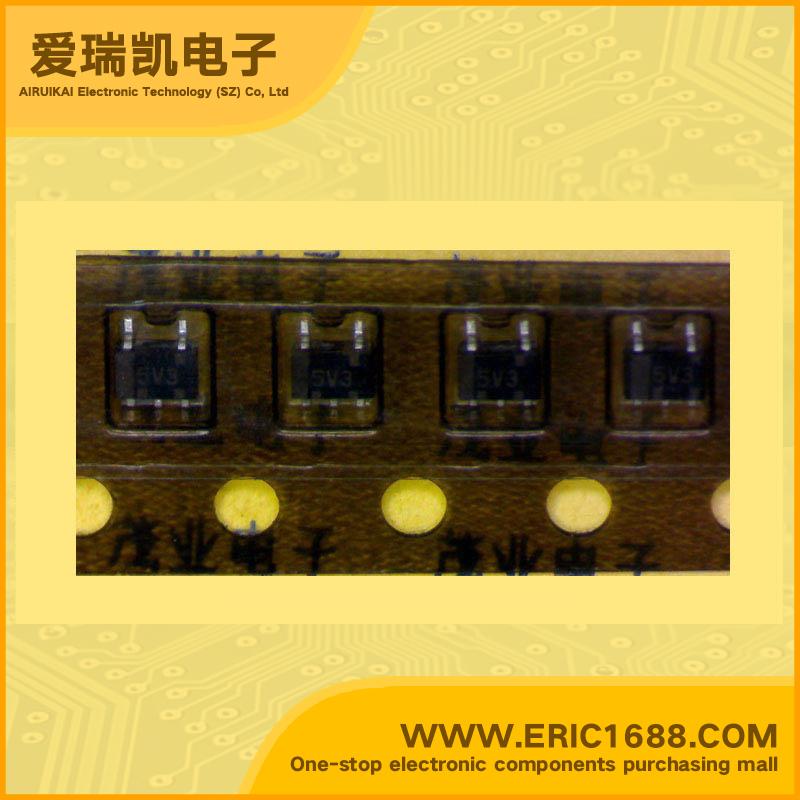

集成电路IC 或非门 S-75V02ANC SOT-353/SC-88A/SC70-5 marking/标记 5V3
| 逻辑类型Logic Type | 或非门 NOR Gate |
| 电路数Number of Circuits | 1 |
| 输入数Number of Inputs | 2 |
| 电源电压VccVoltage - Supply | 2.0V~5.5V |
| 静态电流IqCurrent - Quiescent (Max) | 1uA |
| 输出高，低电平电流Current - Output High, Low | -8mA，8mA |
| 低逻辑电平Logic Level - Low | 0.5V |
| 高逻辑电平Logic Level - High | 1.5V |
| 传播延迟时间@Vcc，CLMax Propagation Delay @ V, Max CL | 3.6ns @ 4.5V~5.5V，15pF |
| Description & Applications | Features MINI LOGIC SERIES 2 INPUT NOR GATE Wide power supply range: 2 V to 5.5 V Low current consumption: 1.0 μA max(at 5.5 V, 25°C) Typical propagation delay: tPD = 3.6 ns (at 5 V) High noise immunity: VNIH = VNIL = 28% VCC min Power down protection: All pins Lead-free |
| 描述与应用 | 特性 迷你逻辑系列2输入或非门 宽电源电压范围：2 V至5.5 V 低消耗电流：1.0μA最大值（在5.5 V，25°C） 典型传播延迟：TPD =3.6纳秒（5 V） 高抗干扰性：VNIH= VNIL=28％VCC最小 掉电保护：所有引脚 无铅 |
| 规格书PDF |
