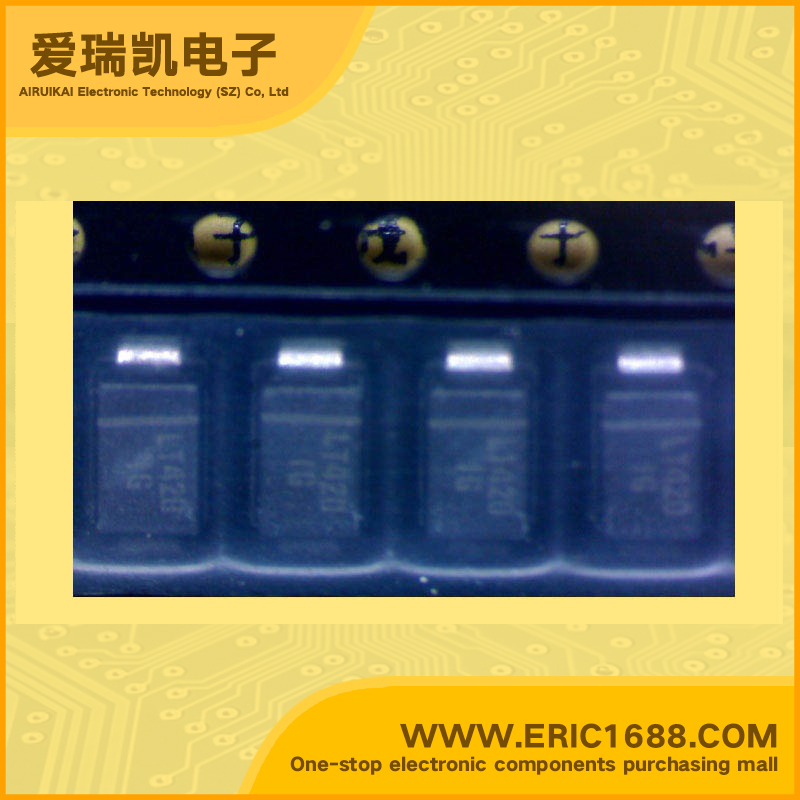

SMAJ13A-F 瞬态抑制二极管TVS/ESD 13V 18.6A DO-214AC/SMA-13V 标记IG

价格(不含运费):
起批量(PCS):
¥0.600
≤99
¥0.540
≤499
¥0.450
≤999
¥0.390
≤4999
¥0.360
整包

热销商品

产品描述
极性Polarization单向 Unidirectional
反向关断电压/工作电压VRWMReverse Standoff Voltage13V
反向击穿电压VBRBreakdown Voltage15.15V
峰值脉冲耗散功率PPPMPeak Pulse Power Dissipation400W
峰值脉冲电流IPPmPeak Forward Surge Current18.6A
额定耗散功率PdPower dissipation
Description & ApplicationsFEATURES • Surface Mount Transient Voltage Suppressors • Low profile package • Ideal for automated placement • Glass passivated chip junction • Available in uni-directional and bi-directional • 400 W peak pulse power capability with a10/1000 µs waveform, repetitive rate (duty cycle): 0.01 % (300 W above 78 V) • Excellent clamping capability • Very fast response time • Low incremental surge resistance • Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C • Solder dip 260 °C, 40 s • Component in accordance to RoHS 2002/95/EC
描述与应用特点 •表面贴装瞬态电压抑制器•薄型包装 •适合自动放置 •玻璃钝化结 •可提供单向和双向 •400瓦峰值脉冲功率能力与a10/1000微秒波形,重复频率(工作周期):0.01%(高于78 V300 W) •出色的钳位能力 •非常快的响应时间 •低增量浪涌电阻 •会见MSL每1,J-STD-020,LF最大峰值为260°C •浸焊260°C,40秒 •组件按照RoHS 2002/95/EC
规格书PDF
