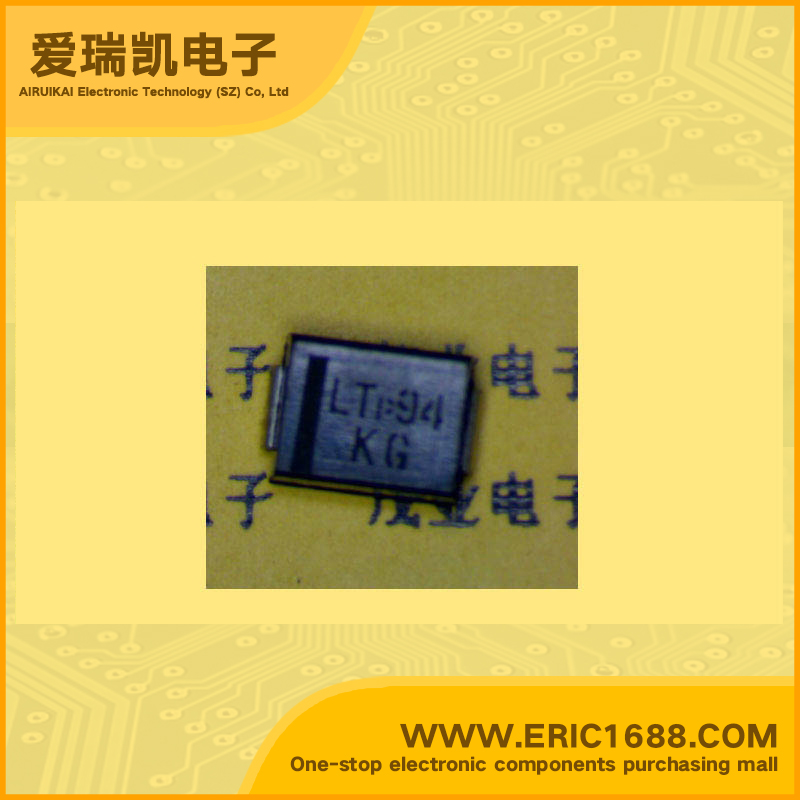

SMBJ6.0A-13 瞬态抑制二极管TVS/ESD 6.0V 58.3A 1.5W DO-214AA/SMB-6V 标记KG
| 极性Polarization | 单向 Unidirectional |
| 反向关断电压/工作电压VRWMReverse Standoff Voltage | 6.0V |
| 反向击穿电压VBRBreakdown Voltage | 7.02V |
| 峰值脉冲耗散功率PPPMPeak Pulse Power Dissipation | 600W |
| 峰值脉冲电流IPPmPeak Forward Surge Current | 58.3A |
| 额定耗散功率PdPower dissipation | 1.5W |
| Description & Applications | FEATURES •SURFACE MOUNT UNIDIRECTIONAL AND BIDIRECTIONAL TRANSIENT VOLTAGE SUPPRESSORS •For surface mounted applications •Reliable low cost construction utilizing molded plastic technique •Plastic material has UL flammability classification 94V-O •Typical IR less than 1uA above 10V •Fast response time: typically less than 1.0ns for •Uni-direction,less than 5.0ns for Bi-direction,form 0 Volts to BV min |
| 描述与应用 | 特点 •表面贴装单向和双向瞬态电压抑制器 •对于表面安装应用 •可靠的低造价利用塑料成型技术 •塑料材料具有易燃性分类UL94V-O •典型IR10V以上低于1uA •快速响应时间：通常小于1.0ns的 •统一方向，小于5.0ns为双向，形式0伏特至BV分钟 |
| 规格书PDF |
