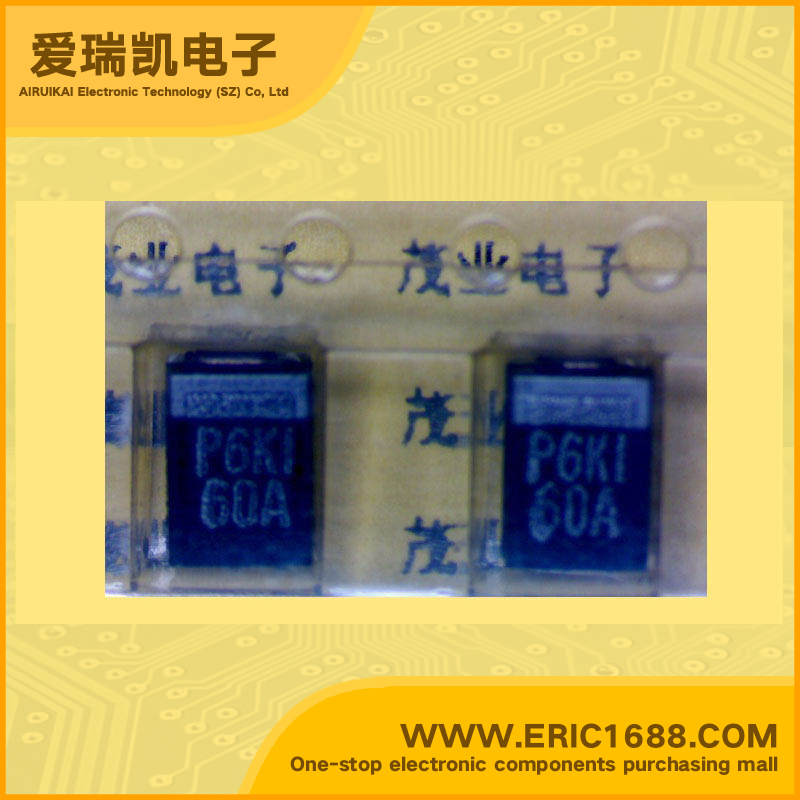

SMBJP6KE160A 瞬态抑制二极管TVS/ESD 136V 2.8A DO-214AA/SMB-160V 标记P6K1

热销商品

产品描述
极性Polarization单向 Unidirectional
反向关断电压/工作电压VRWMReverse Standoff Voltage136V
反向击穿电压VBRBreakdown Voltage160V
峰值脉冲耗散功率PPPMPeak Pulse Power Dissipation600W
峰值脉冲电流IPPmPeak Forward Surge Current2.8A
额定耗散功率PdPower dissipation
Description & ApplicationsFEATURES •Transient Voltage Suppressor 6.8 to 550 Volts 600 Watt •For surface mount applicationsin in order to optimize board space •Lead Free Finish/Rohs Compliant (Note1) ("P"Suffix designates Compliant. See ordering information) •Fast response time: typical less than 1.0ps from 0 volts to VBR minimum • Low inductance •Excellent clamping capability •UL Recognized File # E331408
描述与应用特点 •瞬态电压抑制器6.8到550伏特600瓦•对于表面贴装applicationsin的为了优化电路板空间 •对无铅要求完成/ RoHS标准(注1)(“P”后缀指定标准。参见订购信息) •快速响应时间:典型小于1.0PS从0伏VBR最低 •低电感 •出色的钳位能力 •UL识别的文件#E331408
规格书PDF
