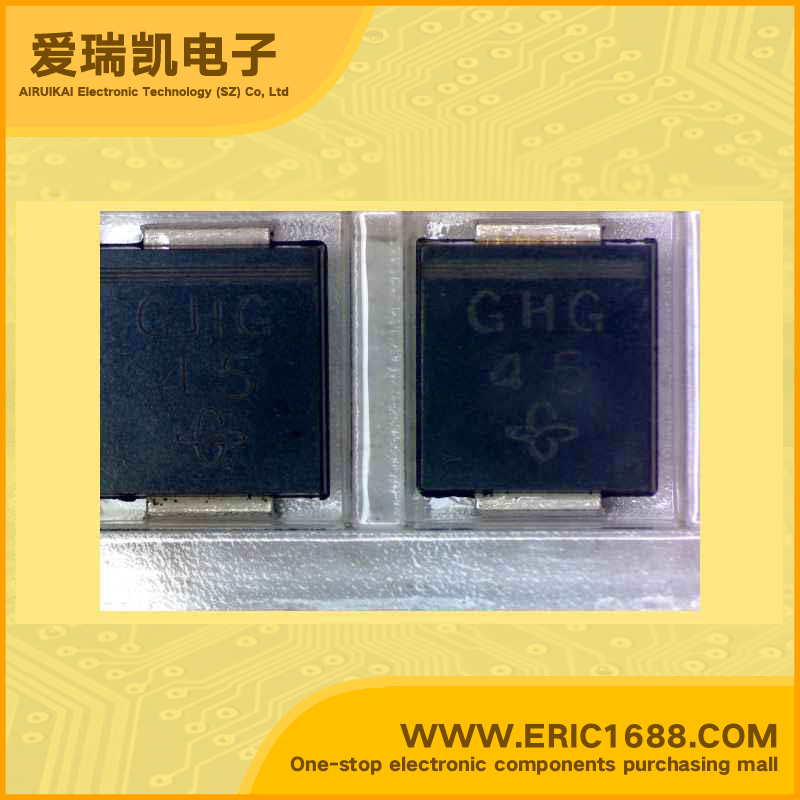

SMCJ120A 瞬态抑制二极管TVS/ESD 120V 7.8A DO-214AB/SMC-120V 标记CHG
| 极性Polarization | 单向 Unidirectional |
| 反向关断电压/工作电压VRWMReverse Standoff Voltage | 120V |
| 反向击穿电压VBRBreakdown Voltage | 140V |
| 峰值脉冲耗散功率PPPMPeak Pulse Power Dissipation | 1500W |
| 峰值脉冲电流IPPmPeak Forward Surge Current | 7.8A |
| 额定耗散功率PdPower dissipation | |
| Description & Applications | FEATURES •Transient Voltage Suppressors •Glass passivated junction. •1500 W Peak Pulse Power capability on 10/1000 µs waveform. •Excellent clamping capability. •Low incremental surge resistance. •Fast response time; typically less than 1.0 ps from 0 volts to BV for unidirectional and 5.0 ns for bidirectional. •Typical less than 1.0 µA above 10V. •UL certified, UL #E210467. |
| 描述与应用 | 特点 •瞬态电压抑制器 •玻璃钝化结。 •1500 W峰值脉冲功率10/1000微秒的能力波形。 •出色的钳位能力。 •低增量浪涌电阻。 •快速响应时间通常小于1.0 ps的从0伏BV双向单向和5.0 ns的。 •典型10V以上小于1.0μA。 •UL认证，UL E210467。 |
| 规格书PDF |
