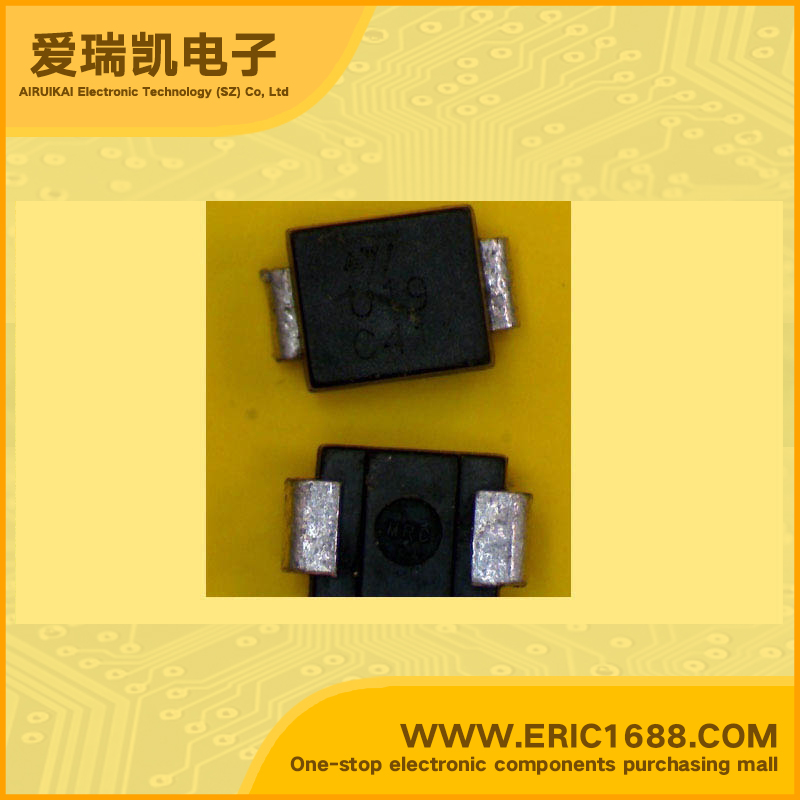

SMTPA130 瞬态抑制二极管TVS/ESD 117V 50A 5W DO-214AA/SMB-130V 标记U19
| 极性Polarization | 双向 Bidirectional |
| 反向关断电压/工作电压VRWMReverse Standoff Voltage | 117V |
| 反向击穿电压VBRBreakdown Voltage | 130V |
| 峰值脉冲耗散功率PPPMPeak Pulse Power Dissipation | |
| 峰值脉冲电流IPPmPeak Forward Surge Current | 50A |
| 额定耗散功率PdPower dissipation | 5W |
| Description & Applications | FEATURES •BIDIRECTIONAL CROWBAR PROTECTION. •BREAKDOWN VOLTAGE RANGE:From 62 V To 270 V. •HOLDING CURRENT = 150 mA min •REPETITIVE PEAK PULSE CURRENT :IPP = 50 A, 10/1000 µs. |
| 描述与应用 | 特点 •双向撬棍保护。 •击穿电压范围从62 V到270 V •保持电流=150 mA最小 •重复峰值脉冲电流IPP=50 A，10/1000微秒。 |
| 规格书PDF |
