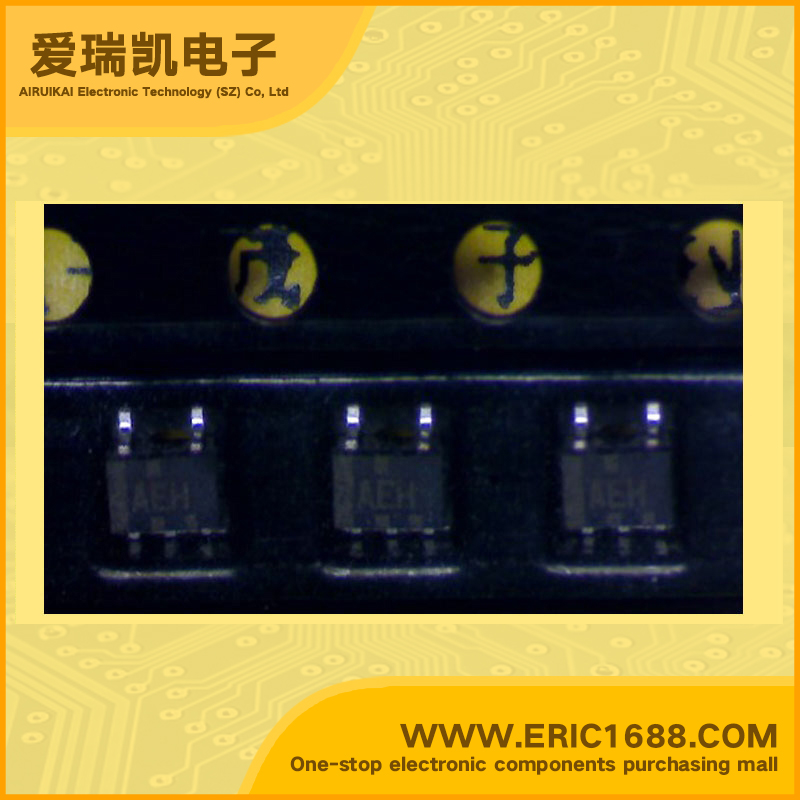

集成电路IC 与门 SN74AHC1G08HDCK3 SOT-353/SC70-5/SC-88A marking/标记 AEH
| 逻辑类型Logic Type | 与门 AND Gate |
| 电路数Number of Circuits | 1 |
| 输入数Number of Inputs | 2 |
| 电源电压VccVoltage - Supply | 2v~5.5v |
| 静态电流IqCurrent - Quiescent (Max) | 10uA |
| 输出高，低电平电流Current - Output High, Low | -8mA,8mA |
| 低逻辑电平Logic Level - Low | 0.5v~1.65v |
| 高逻辑电平Logic Level - High | 1.5v~3.85v |
| 传播延迟时间@Vcc，CLMax Propagation Delay @ V, Max CL | 3.4nS @ 5V, 50pF |
| Description & Applications | SINGLE 2-INPUT POSITIVE-AND GATE ；Operating Range of 2 V to 5.5 V Switching speed typ3.7ns(@Vcc=3v,CL=15pf) All inputs VLH(MAX)=5.5v(@Vcc=0 to 5.5v) |
| 描述与应用 | 单路2输入正与门;2 V至5.5 V的工作范围 的开关速度typ3.7ns（@ VCC=3V，CL=15PF） 所有输入VLH（MAX）= 5.5V（VCC =0至5.5V） |
| 规格书PDF |
