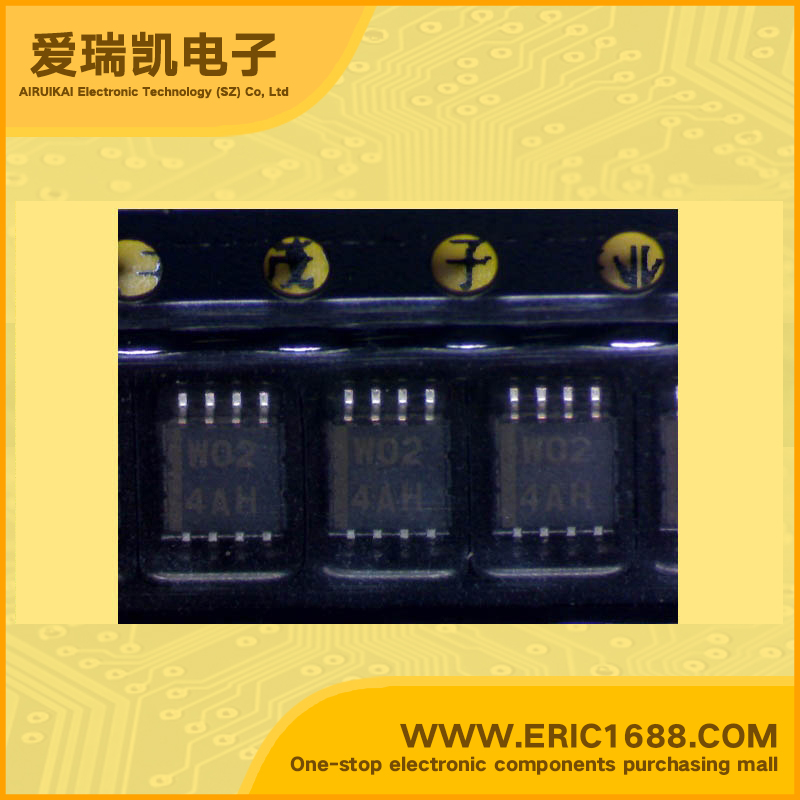

集成电路IC 或非门 SN74AHC2G02HDCT3 SSOP8/SM8 marking/标记 W02
| 逻辑类型Logic Type | 或非门 NOR Gate |
| 电路数Number of Circuits | 1 |
| 输入数Number of Inputs | 2 |
| 电源电压VccVoltage - Supply | 2v~5.5v |
| 静态电流IqCurrent - Quiescent (Max) | 10uA |
| 输出高，低电平电流Current - Output High, Low | |
| 低逻辑电平Logic Level - Low | 0.5v~1.65v |
| 高逻辑电平Logic Level - High | 1.5v~3.85V |
| 传播延迟时间@Vcc，CLMax Propagation Delay @ V, Max CL | 3.6ns @ 5V，50pF |
| Description & Applications | DUAL 2-INPUT POSITIVE-NOR GATE ;Operating Range 2-V to 5.5-V VCC Switching Speed Typ3.9ns(@ VCC=3.0V, (TOP VIEW)CL=15pF) All inputs VIH(Max)=5.5V (@Vcc=0 to 5.5V) low power dissipation lcc (max) 1uA(@Ta=25C) |
| 描述与应用 | 双2输入正或非门;经营范围2-V到5.5 V的VCC 开关的速度Typ3.9ns（VCC= 3.0V， （顶视图）CL=15PF） 所有输入VIH（最大）= 5.5V（VCC =0〜5.5V） 低功耗LCC（最大值）微安（T A= 25°C） |
