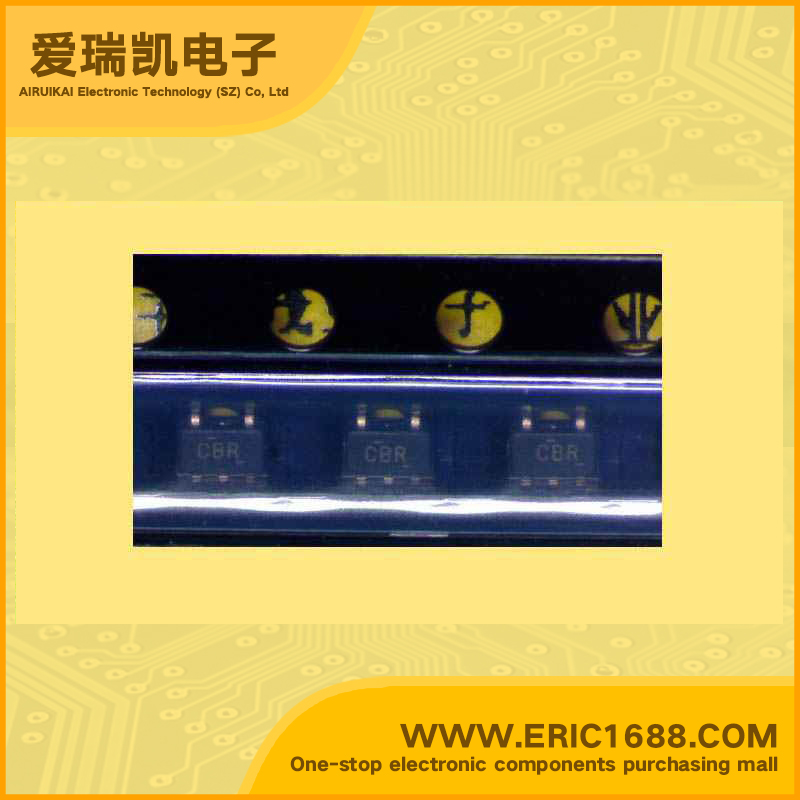

集成电路IC 或非门 SN74LVC1G02DCKR SOT-353/SC70-5/SC-88A marking/标记 CBR
| 逻辑类型Logic Type | 或非门 NOR Gate |
| 电路数Number of Circuits | 1 |
| 输入数Number of Inputs | 2 |
| 电源电压VccVoltage - Supply | 1.65V~5.5V |
| 静态电流IqCurrent - Quiescent (Max) | 10µA |
| 输出高，低电平电流Current - Output High, Low | -32mA,32mA |
| 低逻辑电平Logic Level - Low | 0.7 V ~ 0.8 V |
| 高逻辑电平Logic Level - High | 1.7 V ~ 2 V |
| 传播延迟时间@Vcc，CLMax Propagation Delay @ V, Max CL | 4nS @5v,50pF |
| Description & Applications | SINGLE 2-INPUT POSITIVE NOR-GATE； • Available in the Texas Instruments NanoFree™ • Latch-Up Performance Exceeds 100 mA Per Package JESD 78, Class II • Supports 5-V VCC Operation • Inputs Accept Voltages to 5.5 V • Max tpd of 3.6 ns at 3.3 V • Low Power Consumption, 10-μA Max ICC • ±24-mA Output Drive at 3.3 V • Ioff Supports Partial-Power-Down Mode Operation • ESD Protection Exceeds JESD 22 – 2000-V Human-Body Model (A114-A) – 1000-V Charged-Device Model (C101) |
| 描述与应用 | 单路2输入正或非门; •可在德州仪器NanoFree™•闭锁性能超过100 mA每 包装JESD 78，II类 •支持5-V VCC操作 •接受输入电压为5.5 V •最大TPD为3.6 ns在3.3 V •低功耗，10μA最大ICC •±24 mA输出驱动在3.3 V •IOFF支持部分掉电模式操作 •ESD保护超过JESD22 - 2000-V人体模型（A114-A） - 1000-V带电器件模型（C101） |
